CONCRETE BATCHING PLANT
Exceeds all your expectations with Luton concrete batching plant – High quality materials, long component life, tailor-made service, high productivity, and beyond.
Get ideal construction equipment with either stationary or mobile concrete batching plant from Luton manufacturer. Our maximum 240m³/h plant capacity meets any of your construction applications. Start your economic choice with Luton now!
Get a Free Quote!
Luton Concrete Batching Plant
Luton concrete batching plants are designed for ready-mix producers, contractors, precast manufacturers and special applications. Furnished mainly with twin shaft mixers, also available with 0.5m3 and 1.5m3 planetary mixers.
The plants are available in various capacities ranging from 25m3 to 240m3 per hour of compacted concrete output and designed for operations under extreme conditions with highest performance. Special plant designs are available for dam construction and precast manufacturers. The design can adopt Ice dosing, Microsilica dosing and some special additives very easily.
Ultimate modular design provides flexibility to adapt to site conditions and add on features as per project requirements. Specially cast wear resistant parts keep maintenance time and cost at a very low level.
Why Invest Concrete Batching Plant?
Concrete batching plant is among those acquisitions that will show to be a very good investment. It will certainly deliver actual worth in a short amount of time. Depending on your approaching building and construction project, it can show to be worth the investment from the day you obtain it and also establish it up. Numerous businesses who buy concrete batching plants claim that they want they would certainly take the plunge faster as the advantages of such plants are wide-reaching.
Besides, with the higher demand for high-grade concrete, the concrete plant prices will rise in the near future, bringing tougher conditions for those who lack the budget.
That is why you should and must invest Luton concrete batching mixing plant, with high performance and delicate design, you will get a fast return on your investment within one year! Just call us to start your business now!
LUTON CONCRETE BATCHING PLANT FOR SALE
Large capacity in competitive price, stationary concrete batching plant from Luton serves as a good solution for loads of concrete demands – accurate concrete output, brilliant working performance.

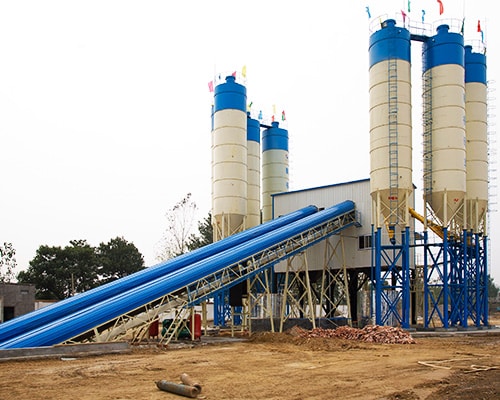

HZS25 Concrete Batching Plant For Sale
| Model | HZS25 |
| Capacity(m³/h) | 25 |
| Storage bins quantity | 2 or 3 or 4 sorts |
| Aggregate scale hopper | 800L |
| Concrete mixer | JS500 |

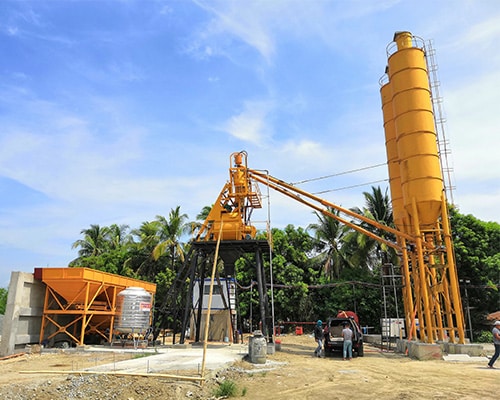

HZS35 Concrete Batching Plant For Sale
| Model | HZS35 |
| Capacity(m³/h) | 35 |
| Storage bins quantity | 3 or 4 sorts |
| Aggregate scale hopper | 1200L |
| Concrete mixer | JS750 |

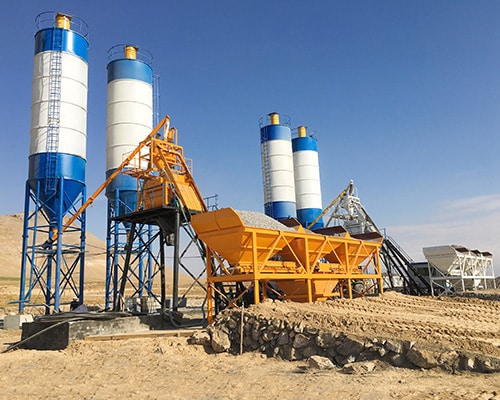

HZS50 Concrete Batching Plant For Sale
| Model | HZS50 |
| Capacity(m³/h) | 50 |
| Storage bins quantity | 3 or 4 sorts |
| Aggregate scale hopper | 1600L |
| Concrete mixer | JS1000 |

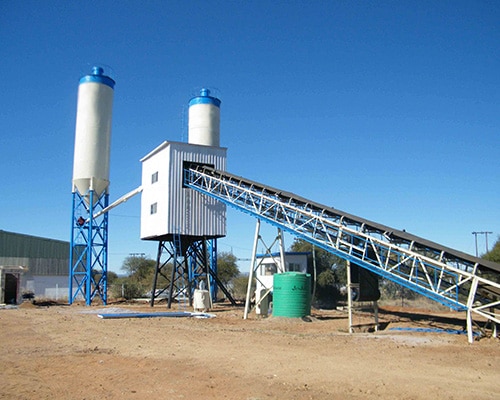

HZS60 Concrete Batching Plant For Sale
| Model | HZS60 |
| Capacity(m³/h) | 60 |
| Discharging height | 3900mm |
| Aggregate batching machine | PLD1600 |
| Concrete mixer | JS1000 |
HZS75 Concrete Batching Plant For Sale
| Model | HZS75 |
| Capacity(m³/h) | 75 |
| Storage bins quantity | 3 or 4 sorts |
| Aggregate scale hopper | 2400L |
| Concrete mixer | JS1500 |
Mobile Concrete Batching Plant For Sale
| Model | YHZS35, YHZS40 |
| Capacity(m³/h) | 35, 40 |
| Matched Aggregate Batcher | PLD1200 |
| Aggregate Weighing Accuracy | 2000Kg ±2% |
| Concrete mixer | JS750 |

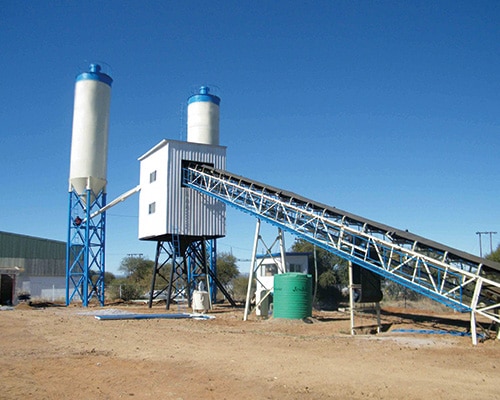

Stationary Concrete Batching Plant For Sale
| Model | HZS60, HZS90, HZS120, HZS180 |
| Capacity(m³/h) | 60, 90, 120, 180 |
| Discharging height | 3900mm – 4000mm |
| Concrete mixer | JS1000, JS1500, JS2000, JS3000 |
| Discharging volume | 1000L, 1500L, 2000L, 3000L |

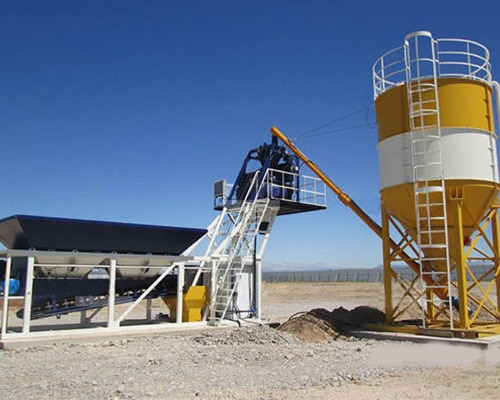

Mini Concrete Batching Plant For Sale
| Model | HZS25, HZS35, HZS50, HZS60 |
| Capacity(m³/h) | 25, 35, 50, 60 |
| Discharging height | 1500mm-3900mm |
| Concrete mixer | JS500, JS750, JS1000, JS1000 |
| Discharging volume | 800L, 1200L, 1600L, 2400L |
Dry Concrete Batching Plant For Sale
| Model | HZS60,HZS90,HZS120,HZS180 |
| Capacity(m³/h) | 60, 90, 120, 180 |
| Discharging height | 3900mm-4000mm |
| Concrete mixer | JS1000, JS1500, JS2000, JS3000 |
| Discharging volume | 1000L, 1500L, 2000L, 3000L |

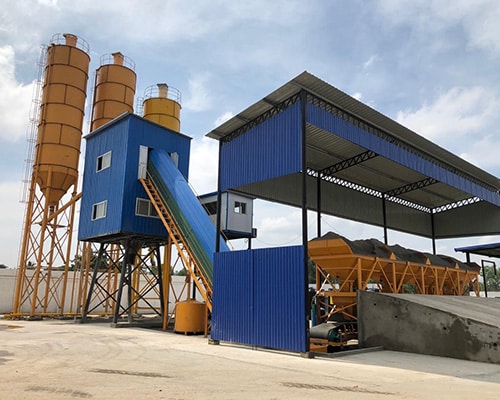

Wet Concrete Batching Plant For Sale
| Model | HZS60,HZS90,HZS120,HZS180 |
| Capacity(m³/h) | 60, 90, 120, 180 |
| Discharging height | 3900mm-4000mm |
| Concrete mixer | JS1000, JS1500, JS2000, JS3000 |
| Discharging volume | 1000L, 1500L, 2000L, 3000L |
Global Cases of LUTON Concrete Batching & Mixing Plant
HZS25 Stationary Concrete Batching Plants Are Sent to the Philippines
Our customers from the Philippines ordered one set of stationary concrete batching plant with a 25m³/h capacity for road construction. And the machines are sent successfully and we already received feedback from our customers.
HZS90 Concrete Batching Plant Exported to the East Timor!
Great news, another set of our HZS90 concrete batching plant was sent to the East Timor in Mar 2022. This type of concrete batching plant is popular and wins great feedback in the East Timor.

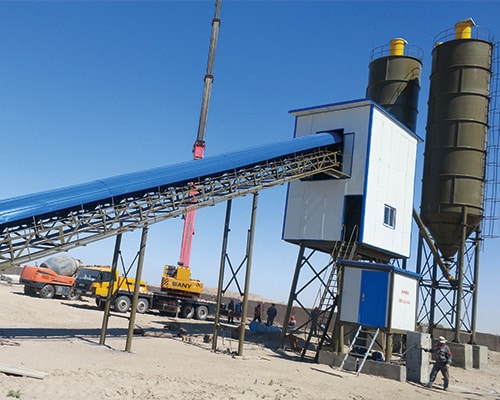

YHZS50 Mobile Concrete Plant in Mongolia
The good news here, our YHZS50 mobile concrete batching mixing plant has been put into use in Mongolia. Our salesman and engineers went to the site and check the whole working conditions of the machine.
HZS120 Wet Concrete Batching Plant Transported to Paraguay
We received another set of wet concrete batch plant last month and they were well-packed and transported to Paraguay, and all of them received high praise.

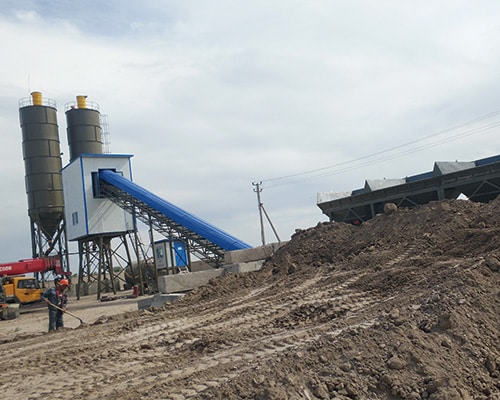

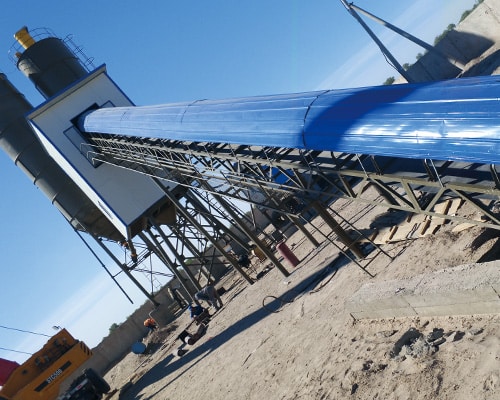

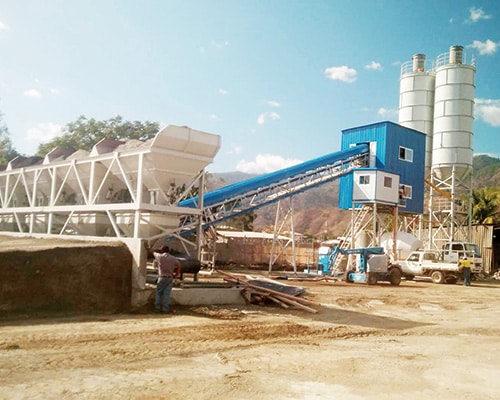

Belt Conveyor Type Concrete Plant in Uzbekistan

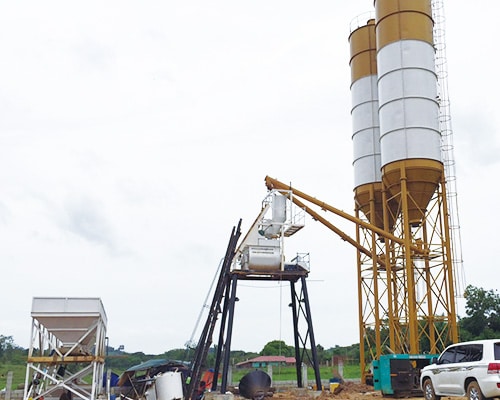

Skip Hopper Type Concrete Plant in Myanmar

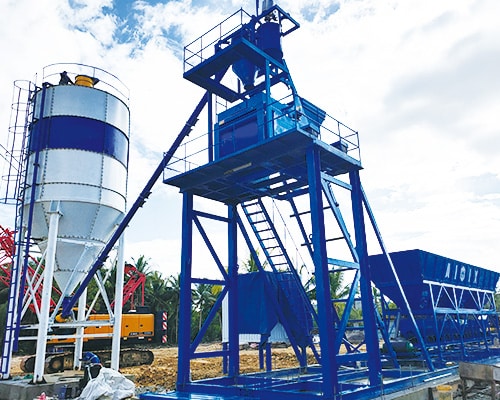

Free Foundation Type Concrete Plant in Sri Lanka

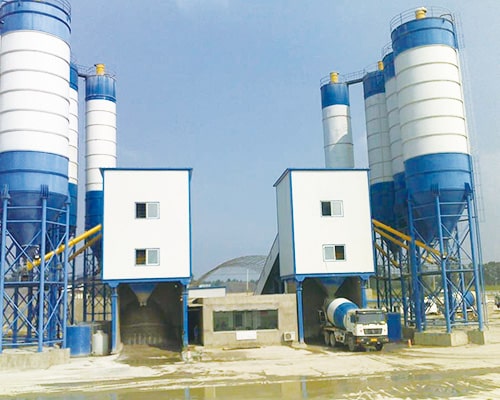

Commercial Concrete Batching Plant in Pakistan

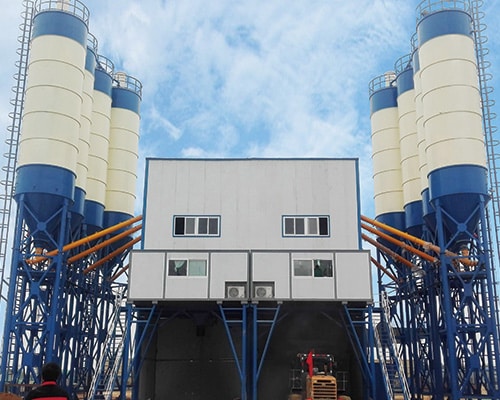

Ready Mix Concrete Plant in Indonesia

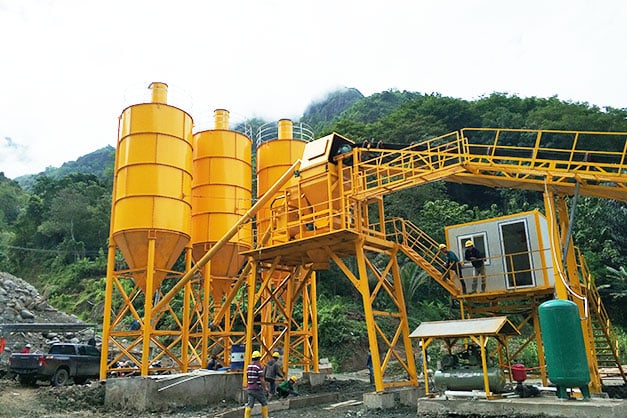

Dry Type Concrete Batch Plant in Indonesia

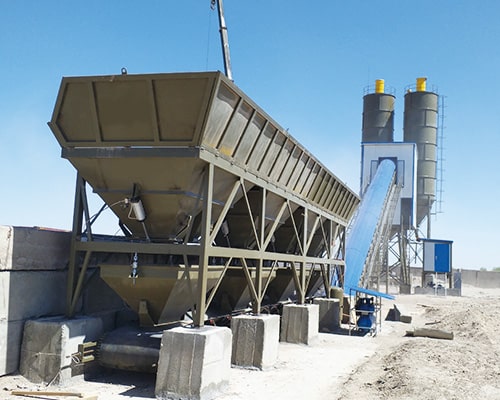

Continuous Concrete Batch Plant in Philippines

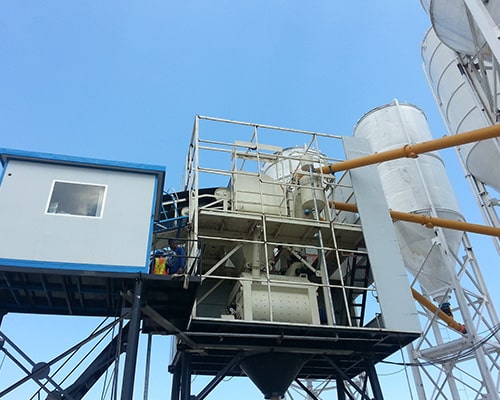

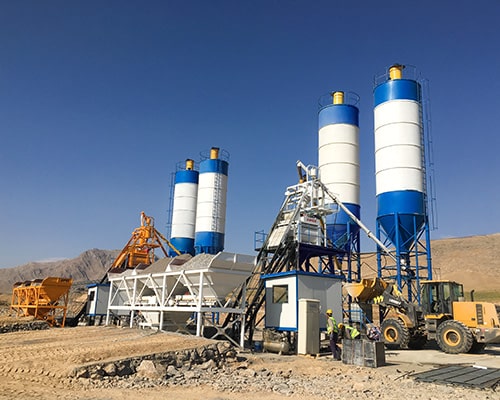

Stationary Concrete Batching Plant in Philippines
Here’s The Feedback From Our Customers
This is the most cost-effective equipment I have ever got, works smoothly and wonderful!
Tanandar Liang – Indonesia
I ordered a complete series of concrete plant equipment from the company, they arrived fast, and patiently guided me on operating.
Montrel Stephen Mangsinco Tortal – Philippines
Contact Us for a Free Consultation.
What Is Concrete Batching Plant Price?
The prices of concrete batching plants vary between $21,000 and $280,000, relying on the production capacity and also the specification of the plant you wish to acquire. Besides equipment procurement price, some other outlay, such as setup cost, material acquisition cost, upkeep price, workers earnings, and insurance policy expenses, issue a lot that to some extent they choose the revenue margin. Nevertheless, simply a concrete plant itself cannot bring advantage to you.
Currently, there are lots of types of concrete mixing plants in the marketplace. Different devices have various craftsmanship and efficiencies, and their prices are likewise different. To acquire or purchase a concrete mixing plant, it’s needed to first determine the anticipated production range of the project, after that determine the capacity, model, and setup of the concrete mixing plant, and finally, choose the equipment based upon this information.
Concrete Batching Plant Price List
| Discharging Capacity(m³) | Approximately Price |
| HZS25 Concrete Batching Plant | $21,000 |
| HZS60 Concrete Batching Plant | $61,000 |
| HZS120 Concrete Batching Plant | $95,000 |
| YHZS75 Concrete Batching Plant | $89,000 |
Cost of Running Concrete Plant Project
The overall price for a concrete plant depends upon its type (ready mix, central mix, mobile/stationary, production capacity, the existing cost of raw materials as well as various other costs like labor as well as estimated hrs in operation. The area often imposes influences on it also. Some critical aspects you’ll need to account for are detailed as complies with.
1. Production Capacity
The production capacity of a concrete mixing plant is different, the price that requires to be invested is various.
One is the gadget itself. The better the production capacity of the equipment, the higher the purchase cost;
2nd, the various production capacity suggests that the demand for raw materials such as cement, crushed rock, sand, and also fly ash is various, which will cause an increase in the capital investment of the whole project.
The production capacity of concrete mixing plants for tiny and also medium-sized projects is below 90m³/h, as well as the production capacity of concrete mixing plants needed for massive production, is typically 120m³/h-270m³/h.
2. Type and Model
To purchase a concrete mixing plant, you need to first identify what type and model of devices you need. The prices of different concrete mixing plants are different, and also the gap is not tiny. Consumers can pick the equipment model according to their actual scenario, select the model and select the economical devices.
3. Site Construction Expense
In addition to the concrete manufacturing equipment, the initial financial investment required to set up a concrete plant likewise consists of the cost of the site, the construction of the office complex and also dormitories, and also the cost of constructing a shut-material yard in order to meet environmental management criteria.
4. Various Operation Costs.
The later operation of the concrete mixing plant includes water as well as electrical power costs, workers’ wages, raw material purchase prices, loaders, as well as concrete transport lorries, which should be considered prior to investing.
5. Various Handling Fees
Investing in a concrete batch plant requires going through different treatments, and these treatments are likewise expensive. These additionally require to be allocated as the investment cost of constructing the mixing plant.
There is one more point that requires to be focused on.
The financial investment cost of a commercial concrete batching plant is higher than a general design concrete mixing plant. The design of concrete mixing station shall fulfill the demands of the project, as well as unnecessary features, can be disposed of, as long as the top quality of the concrete fulfills the requirements of the project. The industrial concrete batching plant should have the ability to generate concrete with a range of typical tags, as well as sometimes requires to meet the unique requirements of customers. The control system needs to be completely automatic, and it additionally needs to have a storage space feature in order to boost work performance.
Luton Concrete Mixing Plant Characteristic

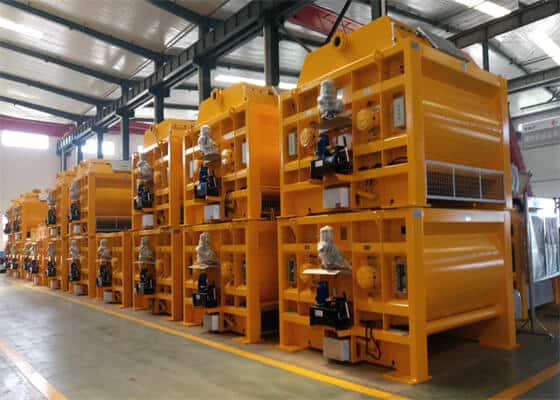

Twin-shaft Mixer
A horizontal twin-shaft compulsory mixer has a strong mixing ability, it can mix the materials evenly and effectively. It can mix concrete with different slumps and raw materials ratios.
Its mixing blade and lining board are made of high chromium wear-resistant alloy.
External shaft end support and special shaft seal ensure the long service life of the mixer.

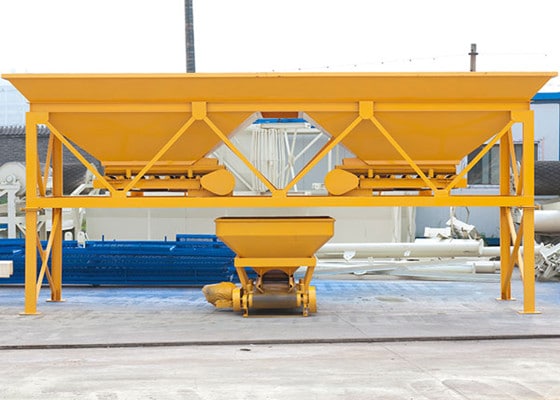

Aggregates Batcher
The quantity of aggregate Bins depends on the customer’s requirements, usually three or four bins. A wheel loader can be used to transfer the aggregates to the aggregate bins.
At the bottom of the aggregate bin, there are one fine aggregate and one coarse aggregate discharging gate.
Once receiving signals, the cylinder will open the discharging gate, and the aggregates are discharged into the weighing hopper respectively.
Weighing System & Aggregate Conveying System
It has the function of automatic difference compensation, aggregates, cement, water fly ash, and additive all has their own weighing system, and the results are accurate.
After weighing, the aggregate is sent to the concrete mixer by the lifting hopper or belt conveying system.

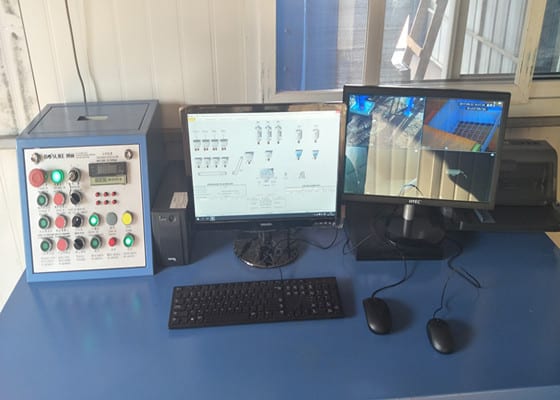

Control System
The whole plant is controlled by the industrial control computer. This system has the following features: real-time data processing function; both automatic and manual control are available; simple and convenient operation, for the automatic control system, the PLC is the world-famous Germany Brand, and the electric components are Schneider Brand from France.
It can save all the data of the plant and the ratio of the material; It can also print all the report forms.
Constant temperature containerized type of control room adopts sound and heat insulation colorful batten board which can ensure the working temperature of electrical devices and also provides a comfortable environment for the operator.
Contact Us for a Free Consultation.
Specifications of Concrete Batch Plants
The concrete batching plants are available in various specs as well as capacities that assist the individual to select according to the workload and also dimension of the sites. Some of the usual specs offered out there are as below;
| Type | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 |
| Theoretical production capacity(m3/h) | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
| Concrete mixer – Type | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Concrete mixer – Discharging capacity(L) | 500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 |
| Concrete mixer – Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 |
| Matched aggregate batcher | PLD800 | PLD1200 | PLD1600 | PL2400 | PLD3200 | PLD4800 | PLD6400 |
| Weighing accuracy – Aggregate (KG) | 1500Kg ±2% | 2000Kg ±2% | 3000Kg ±2% | 4500Kg ±2% | 4500Kg ±2% | 6000Kg ±2% | 9000Kg ±2% |
| Weighing accuracy – Cement(KG) | 300Kg ±1% | 450Kg ±1% | 900Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 3000Kg ±1% | 3000Kg ±1% |
| Weighing accuracy – Fly ash(KG) | 500Kg ±1% | 600Kg ±1% | 600Kg ±1% | 600Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 1500Kg ±1% |
| Weighing accuracy – Water (KG) | 200Kg ±1% | 300Kg ±1% | 600Kg ±1% | 600Kg ±1% | 1000Kg ±1% | 1000Kg ±1% | 1000Kg ±1% |
| Weighing accuracy – Additive(KG) | 20Kg ±1% | 30Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% |
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 4.1m | 4.1m | 4.1m | 4.1m |
| Type | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical production capacity(m3/h) | 60 | 90 | 120 | 180 | 240 |
| Concrete mixer – Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 |
| Concrete mixer – Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 |
| Concrete mixer – Discharging capacity(L) | 1000 | 1500 | 2000 | 3000 | 4000 |
| Concrete mixer – Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80 | 150 | 150 |
| Aggregate Bin volume(m³) | 2/3/4×8.38 | 2/3/4×12 | 2/3/4×20 | 2/3/4×30 | 2/3/4×40 |
| Belt conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 |
| Weighing accuracy – Aggregate (KG) | 3000Kg ±2% | 4500Kg ±2% | 4500Kg ±2% | 6000Kg ±2% | 9000Kg ±2% |
| Weighing accuracy – Cement(KG) | 900Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 3000Kg ±1% | 3000Kg ±1% |
| Weighing accuracy – Fly ash(KG) | 600Kg ±1% | 600Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | 1500Kg ±1% |
| Weighing accuracy – Water (KG) | 600Kg ±1% | 600Kg ±1% | 1000Kg ±1% | 1000Kg ±1% | 1000Kg ±1% |
| Weighing accuracy – Additive(KG) | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% |
| Discharging height(M) | 4.1 m | 4.1 m | 4.1 m | 4.1 m | 4.1 m |
Contact Us for a Free Consultation.
Features of Concrete Batch Mix Plant
There are several attributes that make an effective concrete batching plant. The main benefit needs to be precise weighing as well as reduced maintenance in addition to the smooth procedure.
The significant components of the concrete mixer available are the private weighing devices for aggregate, sand, concrete, water, ingredients, etc. material communication systems; blending system, material storage systems; control board, and various other optional components.
The main quality of this machine is to use concrete as a binding material to blend aggregates, sand, water some ingredients and also lastly produce concrete which can be immediately utilized as a material for building.
Considering the development of these precise devices, the building construction and also road building and construction jobs are on an increase. Obviously, the top-quality construction machines have played a crucial function below.
The devices are generally identified right into:
– Aggregate feeding
– Cement as well as fly ash feeding
– Water feeding
– Transfer zones
– Weighing zones for each and every item
– Mixing areas
– Storage chambers.
The body of the portable concrete batching plants by Atlas is taken of premium quality moderate steel. It is possible to take these tools to locations and additionally hassle-free to install as well as start the manufacturing. Such devices will have exceptional blending performance. The mixers are very established with high resistant plates which can endure torment. Twin shaft mixers are geared up with planetary gearboxes which are durable as well as can take torque easily. The blending system which is the core of the equipment helps in consistently blending concrete basically time.
In addition to the premium quality mixer, the equipment is likewise equipped with various accessories like a screw conveyor for transfer of concrete/ fly ash to the weighing ranges, pneumatically-driven sensing units, lots cells for weighing, pneumatic cylinders, air compressor, and so on. The components picked are all sourced from top quality suppliers as well as assurance dependable procedure of the devices.
Accurate working of the tons cells makes certain that the mix recipe is based on the requirement. As liable and high-quality concrete plant makers, we understand the importance of this device and also, therefore, we have actually created this device to be upkeep free. Because the blending unit will certainly call for maintenance as well as cleansing to be done during routine periods, there suffices space to move the mixing device.
The very same is true for various other components. The control board is extremely easy to use with a touch screen display as well as any kind of operator with basic knowledge of concrete plants can operate the same similar to a touch screen cellphone.
Features
100+ Countries Exported
20+ years industrial experience incorporates with innovative design, 100+ countries exported proves leading position in the industry.
18,000+ Plants Sold
Luton group has now manufactured and sold 18000+ concrete plants, installing our concrete plants equipment and providing unmatched solutions for practically all sectors.
40% Operating Costs Saved
Standardized construction with reliable components makes it adaptable to multiple applications, fully automation design extends service life and accordingly reduces the operating costs.
240m³/h Large Capacity
Quality structural components guarantee high product quality, with the maximum output capacity of 240m³/h, meeting both large and small projects to use.
Gallery
Advantages & Disadvantages of Concrete Batch Plants
Advantages
1. A centralized concrete batching plant can serve a large room.
2. The plants are located in areas for industrial usage and also supply vehicles that can serve residential districts or inside cities.
3. Much better quality concrete is created.
4. Elimination of storage space for basic materials on site.
5. Elimination of hiring of plant and also equipment.
6. The wastefulness of raw materials is prevented.
7. Workers related to the production of concrete are removed.
8. The moment called for is considerably minimized.
9. Noise and dust contamination on the site is minimized.
Disadvantages:
1. Materials from the main plant and mixing start at that plant, so the traveling time is crucial over long distances.
2. The access road, as well as site accessibility, should be unable to lug a better lot of ready-mix trucks.
3. It has limited time between mixing as well as curing the concrete is 210 minutes of batching.
Types of Concrete Batching Plant

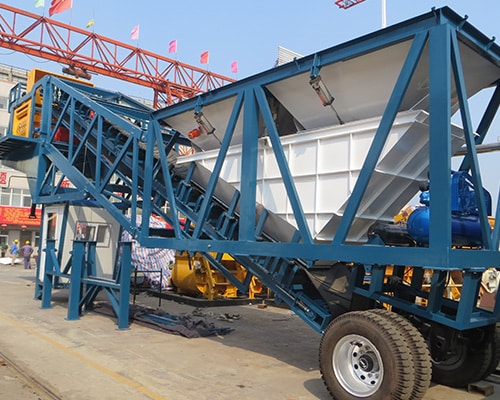

Mobile concrete batching plant
Mobile plants consisting of portable shaft mixers are developed to be portable as well as thus are set up on towable framework with wheels for maximum mobility and also quick arrangement.
Mobile batching plants are excellent for temporary building and construction sites or construction projects where the devices would only be needed for specific as well as brief parts of the projects. Mobile concrete devices can be quickly mounted as well as taken down and because of this require really minimal preparation or established prior to usage.
Mobile concrete batching plants come pre-wired with optimum devices set up to guarantee rapid installment on site. Commonly a standard mobile plant can be set up in 1-2 days.
Stationary concrete batching plant
In the stationary concrete batching plants, cement is mainly used as a binding material for mixing sand, water, and aggregates and also significant ingredients too to create concrete in a quick way for the civil building projects.
The celebration conveyor belt runs below the bins where weighing of aggregates happens and the aggregate are then discharged onto the charging conveyor. Pneumatically operated gateways are attended to discharge of the aggregate on to the celebration conveyor. The material is all weighed properly as well as transferred to the twin shaft mixer through a slinger conveyor.
These stationary concrete plant pneumatics used are of reputed make which guarantee long life and also superior efficiency for your machine. The Stationary Plants are offered in various capacities varying from 30 m3 to 240 m3 per hour of compacted concrete output.
In the current Stationary concrete plants, the aggregates are kept in horizontal bins. The event conveyor belt runs below the containers where the weighing of aggregates happens and the aggregates are then discharged onto the charging conveyor. Pneumatically operated entrances are attended to discharge of the aggregate onto the gathering conveyor.
The material is all weighed properly and moved to the twin shaft mixer via a slinger conveyor. The new batching plants likewise feature the Skip Hoist and also Belt setup choice for mixer loading. The information designs can adopt silica application and some special additives really easily.

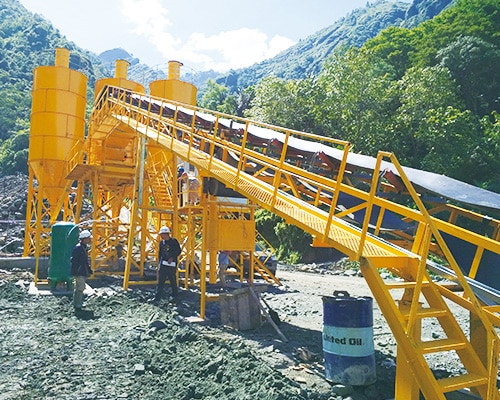

Transit/ Dry mix concrete batching plant
Contemporary dry mix concrete plant consists of the cement silos, feeding system, control system, weighing system and mixing system. Cement silos are the container to maintain and also provide resources such as concrete, sand, and also fly ash according to the need of the manufacturing.
The feeding system is a bridge to connect the aggregates and the mixing system. The accuracy of the weighing system figures out the quantity of the mixed materials, so it has a great result on the quality of mixed concrete. Dry mix concrete batching plants just weigh all the materials based on concrete formula, and then discharge them right into concrete mixer trucks. The procedure of mixing all materials is carried out in a concrete mixer truck.
Throughout the procedure, a concrete mixer truck is accountable for both transportation as well as mixing. Dry mix concrete batching plant does not have the mixing system as the one “wet mix” concrete batching plant possesses.
Consequently, the dry mix concrete batching plant overcomes some inherent flaws of the “wet mix” concrete batching plant has, which is not just suitable for the working conditions of the wet mix concrete batching plant, however also for extreme conditions such as heat, high warmth, high elevation and long transportation range etc
Wet mix concrete batching plant
Modern wet batching concrete plants integrate all the ingredients needed to make concrete prior to it’s relocated to the mixing trucks. Central-mix batching plants use plant-mounted mixers where you place all the concrete ingredients.
Latest-model adopts a twin shaft paddle mixer, which has a solid mixing high quality. This can guarantee there is no or much less residual in the twin shaft concrete mixer, save materials and save cost. With a Central Mix plant, all lots see the very same mixing activity as well as there is a first quality assurance factor when releasing from the main mixer.
Wet mix plants come in versatile as well as stationary designs. The most effective mechanical style infiltrated the item seeks for consistent mixing without detachment, right proportioning and mixing of aggregates and included substances. The wet mix plant communicates precisely mixed chilly mix, solution treated mixes etc.
Portable concrete batching plant
Compact Concrete Batching Plants are made up of smaller sized systems of pre-designed or pre-wired production devices that are typically moved in batches to be lastly put together at the site they are to be used. This makes sure that transport is both faster as well as simpler.
This portable style ensures that the portable concrete plant integrates some of the flexibility benefits of the mobile batching plants and also the efficiency prowess of the stationary concrete batching plant.
Portable concrete plant is developed to reduce deal with site throughout installment and also is plumbed as well as examined at the production facilities. This type of plant mostly carry the ingredients smartly as well as additionally lower the air pollution aspects emission.
Horizontal concrete batching plant
Horizontal concrete batching plant collection has a straightforward but robust layout. The settings up are optimized for affordable transportation and quick setting up. A modern-day and easy-to-operate control system finish off the appealing total package.
A wide variety of concrete dishes are generated reliably and also in excellent quality. The plant is furnished with a powerful ring-pan mixer and also generates approximately 69m³ of fresh concrete per hr. Relying on the demands, the more recent design collection is equipped with a frying pan mixer or a twin-shaft mixer.
While designing the plant, high relevance was connected to the gain access to consequently helping with maintenance. Additionally, the generously dimensioned room enables this plant to be used in a wide variety which can be drawn from a modular system. These high capacity, sturdy plants are the first choice anywhere huge quantities of concrete are needed.
Inline concrete batching plant
New generation inline concrete batching plant incorporated with advanced PLC innovation automation that permits to perform performances like broadband weighing, automated range tolerance checking, inventory monitoring, reports generation consisting of batch smart, tons smart, data wise, dish wise and manufacturing sensible reports for a much better and also cost effective concrete production process.
The recently designed Twin shaft mixer as well as Planetary Mixer enables efficient mixing of concrete with less wastefulness as well as boosted quality specifications with concrete mixing plant. This is a competent concrete production unit which is developed to offer optimal mixing performance while reducing the operation as well as production expenses with minimal upkeep required.
Containerized concrete batching plant.
The containerized concrete batch plant contains mixing system, control system, material storage space system, weighing system, conveying system as well as others. On top of that, the container mixing plant has the attributes such as little footprint, quick setup, convenient transport and more. Compared with the traditional concrete plant, the container mixing plant does not need to establish the legs and also placing brackets, removing basic design as well as construction.
The container concrete batching plant has outstanding ecological performance, practical transport as well as basic setup. It is suitable for supplying concrete manufacturing of numerous kinds such as hydropower, highways, ports, flight terminals, bridges and various other building projects, as well as the building of business concrete batching plants.
Contact Us for a Free Consultation.
Working Principle of Concrete Batching Plant
In operation, the concrete batching plant has 4 essential components. These are the crushed rock feed; Powder feed part (cement, fly ash, bulking agents), water and feed additives, transmission and also storage space. The fundamental operation treatment of the equipment can be specified as,
· System Activation; the mixing formula is input through the control board, this likewise consists of the concrete slump, grade and also productivity. This is the calibration that will be used for the specific elements of the mix.
· The hoppers are evaluated as well as adjusted for precision before the procedure begins
· The belt conveyor is started to transfer the aggregate to the weighing hopper.
· The control valve of the water sump and also admixtures are opened to allow water and also admixtures to stream right into weighing hopper.
· When all weights have actually satisfied the called for volumes the doors of the weighing hoppers is opened immediately.
· The materials are launched into the mixer where mixing continues until the setting time is over. The loading doors are after that opened up and also the mix streams into a concrete mixer truck.
· This procedure is done very meticulously to guarantee the concrete does not set apart, and it has to be utilized before the preliminary setup time of 30– 45 minutes is reached.
How to Choose A Concrete Batching Plant?
Buying a concrete plant needs a lot of pondering and believing very carefully about numerous facets, evaluating advantages and disadvantages, checking into the economic issues, and more.
So, just how can you choose concerning acquiring a concrete plant?
We have actually put together the top seven features to be thought about before purchasing a concrete mixing plant.
1. Building And Construction Atmosphere, Batching Plant Capacity & Other Related Variables
The construction environment is among the leading factors to be considered while purchasing a concrete plant.
So ask on your own the following concerns:
– What is the dimension of the building and construction site?
– Accordingly, what should be the dimension of the devices?
– Similarly, how much quantity of concrete would certainly be needed for the project?
– We largely make concrete batching plants in 3 capacities– 15 Cu m3, 20 Cu m3, as well as 30 Cu m3.
– Just how active is the area near the building site in regards to traffic?
– What is the range between the building site and the conveying vehicle?
2. Integrity of the Equipment
The reliability of the devices and also the quality of concrete created to go hand in hand. Hence, it is necessary to make certain that the batch plant is reputable to get top-quality concrete for your building and construction job. Think about the adhering to elements:
– Inspect the various product attributes
– Examine the control system of the equipment
– Search for personalization choices
– Analyze the product parameters to ensure they meet your
– requirements and requirements
3. Conduct Batching Plant Cost Evaluation
Given that there are several concrete batching plant alternatives offered, it is suggested to establish your spending plan and make a cost analysis of the devices you need. It consists of:
– Transport costs
– Setup prices
– Site preparation expenses
– Electrical and also plumbing prices
– Tax obligation quantity, if any kind of
4. Performance/Cost Ratio
When it refers to the financial aspects, you have to carry out a complete evaluation. It is not adequate to just check out the rate of the concrete plant. You need to also think about the performance-cost ratio. In other words, look for equipment that supplies much more advantages at much less expense. It will raise the performance-cost ratio.
5. Selection of Main Engine
The primary engine of a concrete batching plant has to be chosen after due care and also inspection. You have to seek the following qualities:
– Dependable concrete mixer
– Capability to produce good quality concrete
– Needs to have solid overload capacity
– Should have high production efficiency
– Must have the versatility to the mixing of different commodities
6. Watch out for Accumulation of Options
It is a very critical aspect to be considered while purchasing a concrete batching plant. So be familiar with the kind of cement readily available in your area. It will be the deciding element as the variety of bins for the plant is worried.
7. Worth of the Producer’s Brand
It is essential to go with a producer that is well-known and dependable. You should request the following:
– The innovation utilized
– Quality of products used to put together the equipment
– After-sales services provided by the producer
– Whether the maker offers training on the risk-free and also efficient use as well as routine upkeep as well as upkeep of the concrete plant.
The essential facet while choosing a concrete plant is to look for the most effective mix of high quality and rate, i.e., the equipment must be of the exceptional top quality at an affordable cost.
Contact Us for a Free Consultation.
WHY CHOOSE US?
Luton Group sells in over 100 countries through an experienced sales team. More than 100,000 installed construction machines and equipment guarantee our strength.
Founded in 1999, LUTON GROUP CO., LTD, as a joint stock company, has more than 24 years of exporting experience in manufacturing concrete plants, asphalt plants, self-loading mixers, crushers, dry mortar plants and various types of construction machinery. Many years of experience and unrivaled customer recognition drive LUTON GROUP to become a technologically innovative company with high-quality products and competitive prices.
Application of Batching Plants
In Ready Mix:
A concrete plant additionally known as a ready mix concrete plant is normally located inside the city and concrete is moved to the site by a concrete truck mixer.
Ready-mixed concrete plants are required for the sturdiness, dependability, safety and security, and environmental protection of concrete plant systems.
In Precast Applications:
Precast concrete is a concrete product that is refined in a homogeneous process in the production device.
With cast-in-place concrete, precast concrete can be created in sets as well as healed.
Precast concrete batching plants have a secure building setting, low prices, and also top-quality products.
It is also used in transportation, construction, water conservation, and different areas.
Helpful Ideas for Acquiring a Concrete Batching Plant
Building equipment, consisting of functional concrete batching plants, can be found in a range of different brands, shapes and sizes.
There are likewise various features as well as accessories that include the variety of batching plants that you can use to customize your equipment.
When acquiring brand-new or second hand devices, you are making a significant monetary investment, so making a prudent decision is vital. Below are helpful several suggestions on how to handle this process successfully.
Useful ideas when getting a concrete batching plant.
Pick a plant that is specific to your project A concrete batching plant must have the functions you require to perform your building project effectively. Some, like the self-loading batching plant, are suitable for precast yards or sites that require a constant supply of concrete. The bin-fed batching plant on the other hand has retracting legs for simple transport and also a fold-away conveyor belt to relocate basic materials.
Pick a plant which offers a high degree of effectiveness You want a plant that will certainly boost your productivity. High quantity concrete performance is a top priority for each professional when it concerns choosing the right plant. Mobile plants as well as semi-mobile plants are a preferred choice because of their portability and flexibility.
Pick a batching plant company who can provide what you need You need to buy plant from a dealership who places you first as well as can provide you with a plant matching your specific demands along with wonderful after sales solution.
Contact Us for a Free Consultation.
Ready to get started?
Contact us today to get tailor-made solutions for your construction equipment demands.
TALK TO OUR TEAM
+86-173-2016-6678
