Asphalt Plant On Luton Group
Maximize 30% of productivity and cut 35% of production costs with a quality asphalt mixing plant from Luton. European standards with a reasonable design lead to superior asphalt output and effectively reduce overall costs.
Get a fast return on your investment with either a stationary asphalt mixing plant or mobile asphalt mixing plant. The maximum 320t/h output meets all your applications at the highest level.
QUALITY
WE PROVIDE THE BEST QUALITY ASPHALT PLANTS AND EXCELLENT SUPPORT SERVICE
Look no further than our asphalt plants, we offer efficient asphalt production machines and solutions for road construction companies, keeping in mind today’s standards and customer preferences.
There are four types of asphalt batching plants with capacities ranging from 40t/h to 320t/h, including LB series stationary asphalt plant, LBD series continuous asphalt plant, LBQY series mobile asphalt plant, and simple asphalt mixing plant.
Investment
Why Invest In Luton Asphalt Mixing Plant?
Leveraging a proprietary process control system to manage asphalt plant operations can lead to significant cost reductions, with mix production expenses dropping by as much as 30%. This innovative approach not only makes the process more cost-effective but also enhances the quality of the asphalt mixes produced, exceeding current industry standards.
Moreover, the system contributes to environmental sustainability by reducing the energy consumption associated with mix production and decreasing the metal intensity of the plants. This results in a lesser environmental footprint and aligns with modern environmental requirements.
The design of the system is fully automatic, which substantially reduces labor costs. It minimizes the need for manual intervention, thereby lowering the chances of human error and increasing overall efficiency.
One of the standout features of this system is the increased reliability and durability of the plants. Thanks to LUTON’s own production and stringent quality control at all stages, the longevity of the plant is significantly improved.
Furthermore, the system is designed to comply with modern environmental requirements. It reduces dust and gas emissions into the atmosphere, demonstrating a commitment to environmental responsibility. This not only ensures compliance with regulations but also contributes to a healthier environment.
In summary, the proprietary process control system offers a comprehensive solution that optimizes cost, enhances quality, improves reliability, and promotes environmental sustainability in asphalt production.
MODELS
Luton Asphalt Batching Plants For Sale
As a leading manufacturer of asphalt batching plants, LUTON has exported more than 5,000 machines to various countries around the world, winning high praise.
Stationary Asphalt Plant

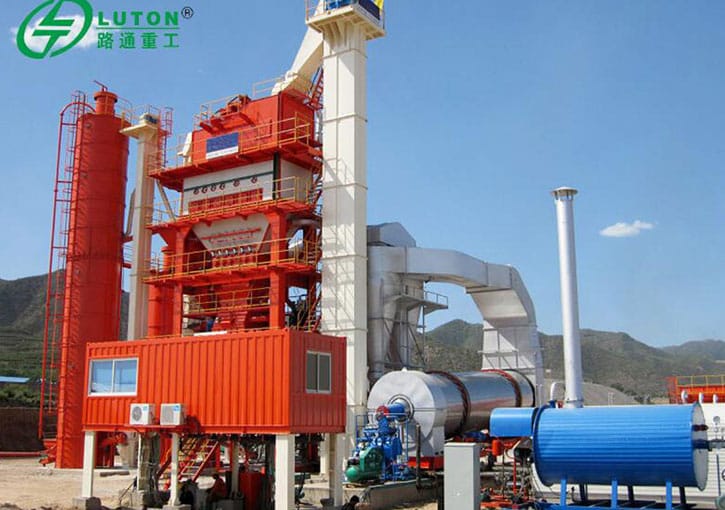

LB800 Asphalt Plants
Best Seller
60t/h
Capacity
4ร6.5mยณ
Hopper Capacity
ฯ1.5mร6m
Dryer Size
4 layer
Vibrating Screen
Large Stock
Ready for Shipment

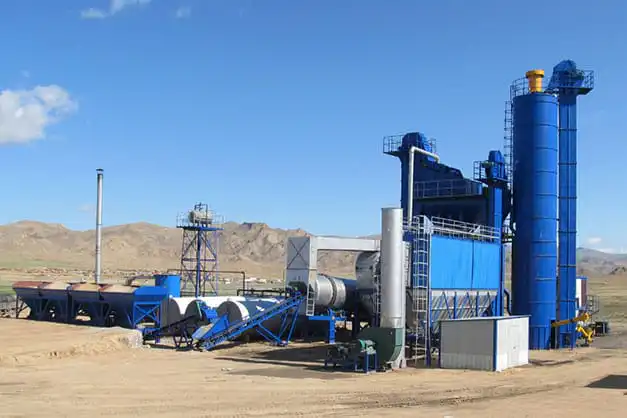

LB1000 Asphalt Plants
Hot Selling Model
80t/h
Capacity
4ร7.5mยณ
Hopper Capacity
ฯ1.5mร6.7m
Dryer Size
4 layer
Vibrating Screen
Large Stock
Ready for Shipment

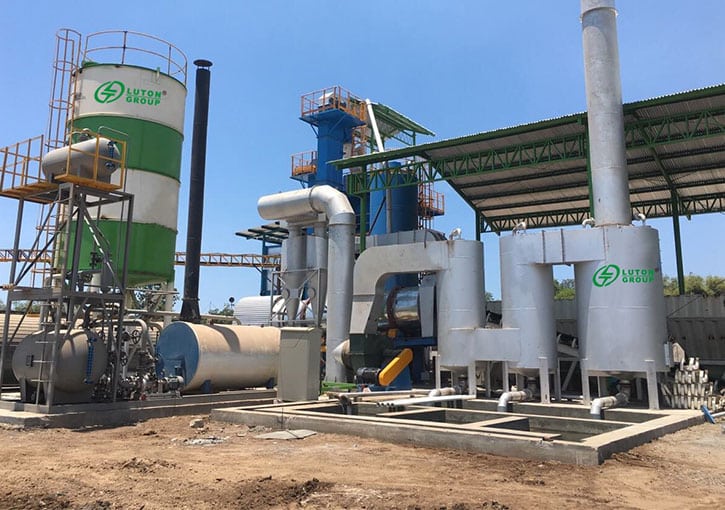

LB1200 Asphalt Plants
Hot Selling Model
100t/h
Capacity
4ร7.5mยณ
Hopper Capacity
ฯ1.65mร7m
Dryer Size
4 layer
Vibrating Screen
Large Stock
Ready for Shipment

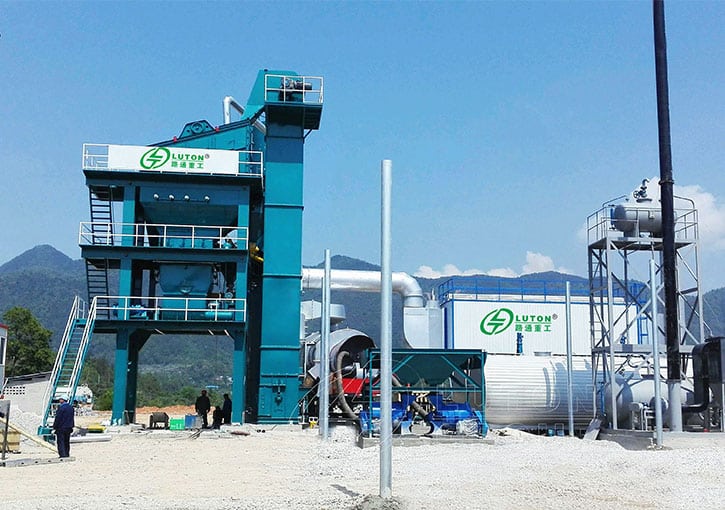

LB1500 Asphalt Plants
Highly Recommend
120t/h
Capacity
4ร7.5mยณ
Hopper Capacity
ฯ1.8mร8m
Dryer Size
4 layer
Vibrating Screen
Large Stock
Ready for Shipment

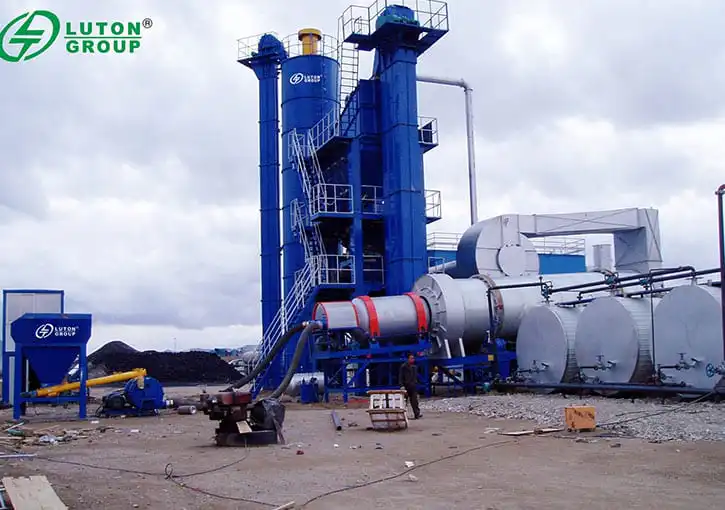

LB2000 Asphalt Plants
On Sale
160t/h
Capacity
5ร12mยณ
Hopper Capacity
ฯ2.2mร9m
Dryer Size
5 layer
Vibrating Screen
Large Stock
Ready for Shipment

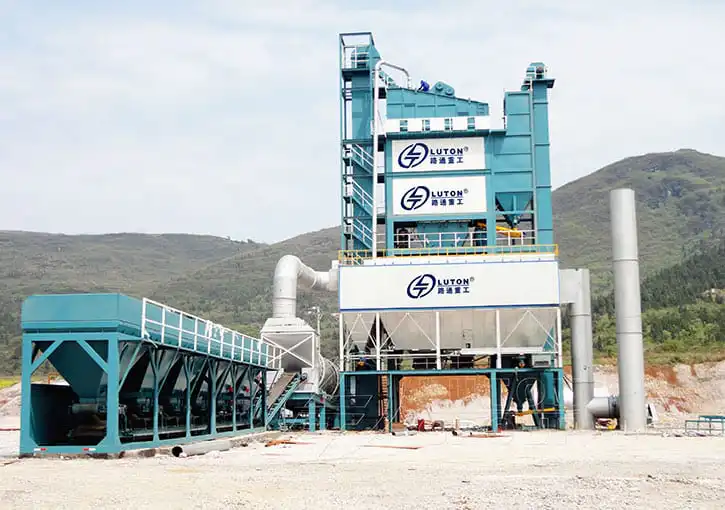

LB2500 Asphalt Plants
Upgraded Model
200t/h
Capacity
5ร12mยณ
Hopper Capacity
ฯ2.6mร9m
Dryer Size
5 layer
Vibrating Screen
Large Stock
Ready for Shipment
LB3000 Asphalt Plants
For Remote Worksite
240t/h
Capacity
5ร12mยณ
Hopper Capacity
ฯ2.6mร9.5m
Dryer Size
5 layer
Vibrating Screen
Large Stock
Ready for Shipment

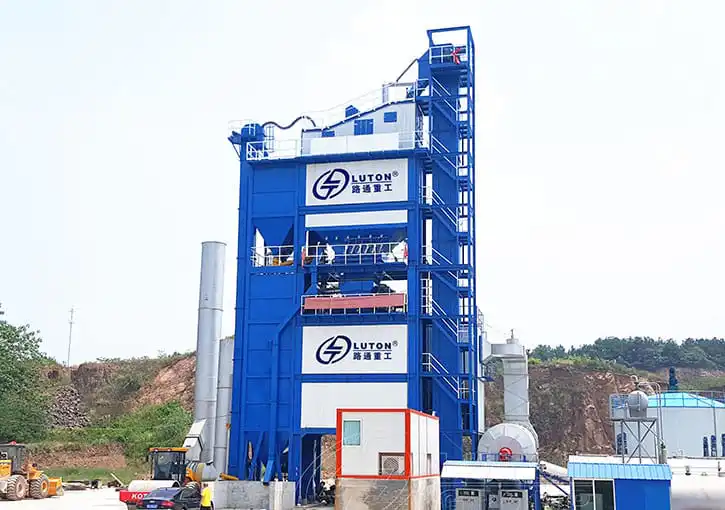

LB4000 Asphalt Plants
For Remote Worksite
320t/h
Capacity
6ร15mยณ
Hopper Capacity
ฯ2.8mร10.2m
Dryer Size
5 layer
Vibrating Screen
Large Stock
Ready for Shipment
Continuous Type Mobile Asphalt Plant

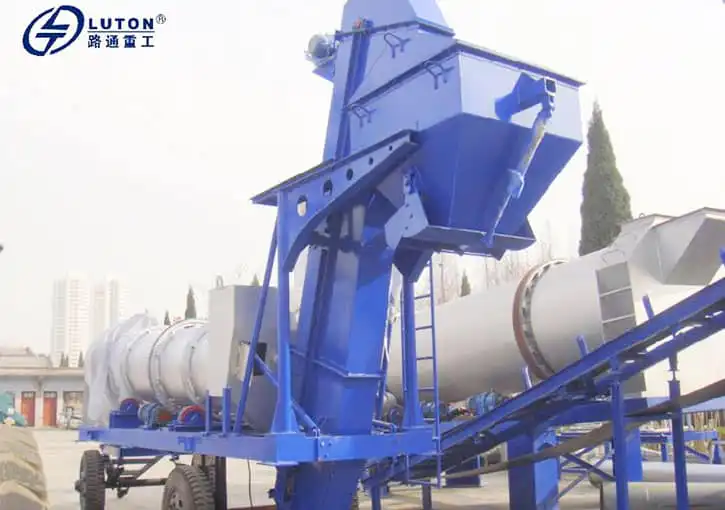

LBD-40 Continuous Asphalt Plants
Hot Selling Model
40t/h
capacity
65kW
Fuel Oil
75kW
Burning Coal
3t
Storage Bin
Large Stock
Ready for Shipment
LBD-60 Continuous Asphalt Plants
Exported to 20 Areas
60t/h
capacity
105kW
Fuel Oil
120kW
Burning Coal
7t
Storage Bin
Large Stock
Ready for Shipment

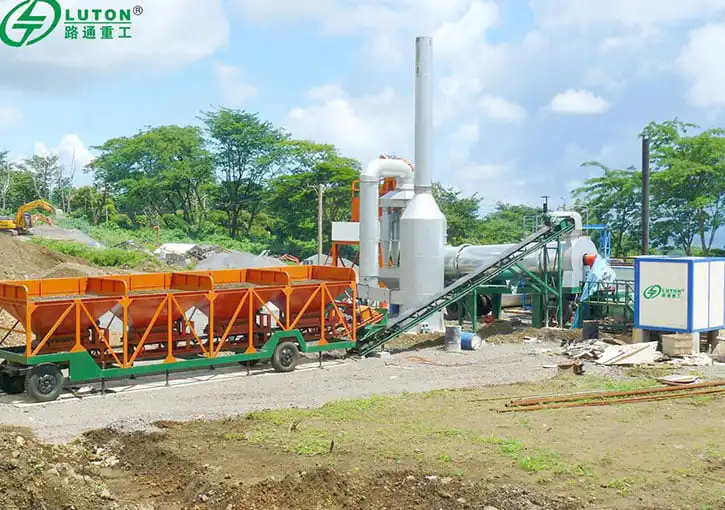

LBD-80 Continuous Asphalt Plants
Save 10% Overall Cost
80t/h
capacity
135kW
Fuel Oil
165kW
Burning Coal
7t
Storage Bin
Large Stock
Ready for Shipment

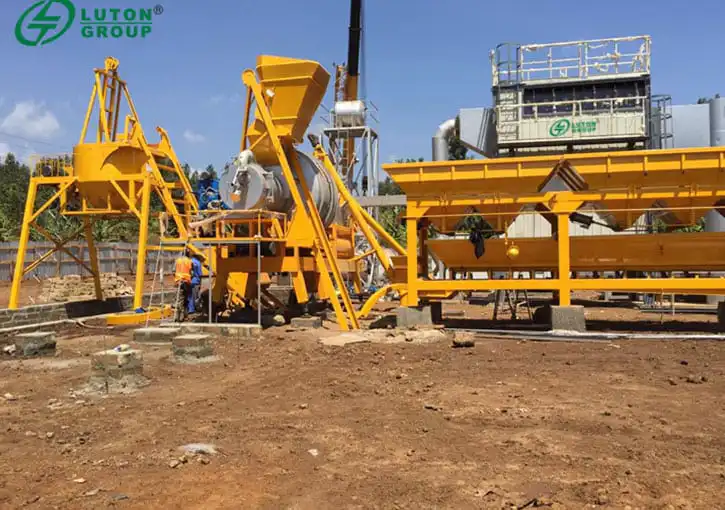

Mobile Simple Asphalt Plant

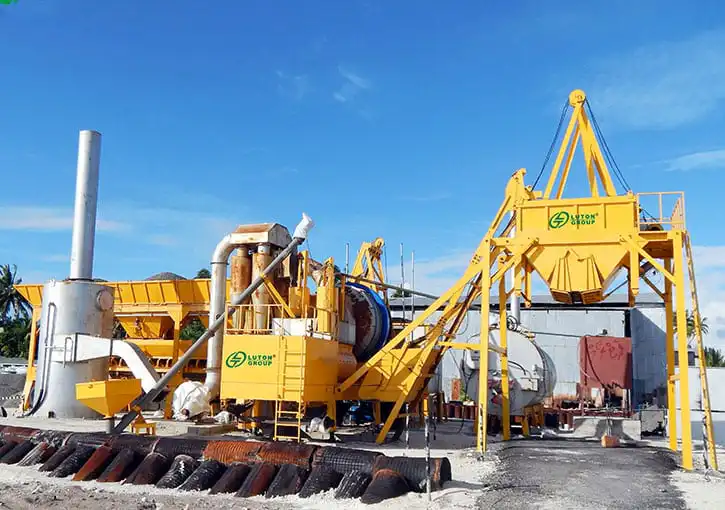

LYJ10 Mini Mobile Asphalt Plant
Hot Selling Model
10t/h
Capacity
3mยณx3
Feeding System
2t
Finished Asphalt Storage Bin
120-180โ
Asphalt Temperature
Large Stock
Ready for Shipment
LYJ20 Small Mobile Asphalt Plant
Exported to 20 Areas
20t/h
Capacity
3mยณx3
Feeding System
5t
Finished Asphalt Storage Bin
120-180โ
Asphalt Temperature
Large Stock
Ready for Shipment

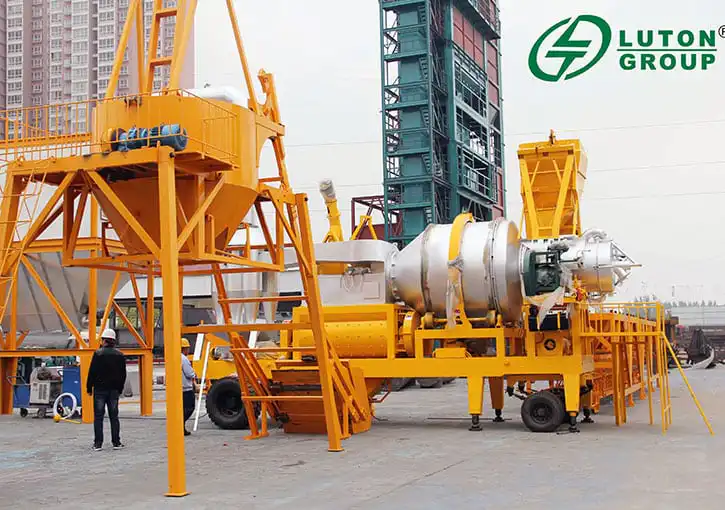

LYJ30 Mini Mobile Asphalt Batching Plant
Exported to 20 Areas
30t/h
Capacity
5mยณx3
Feeding System
9t
Finished Asphalt Storage Bin
120-180โ
Asphalt Temperature
Large Stock
Ready for Shipment

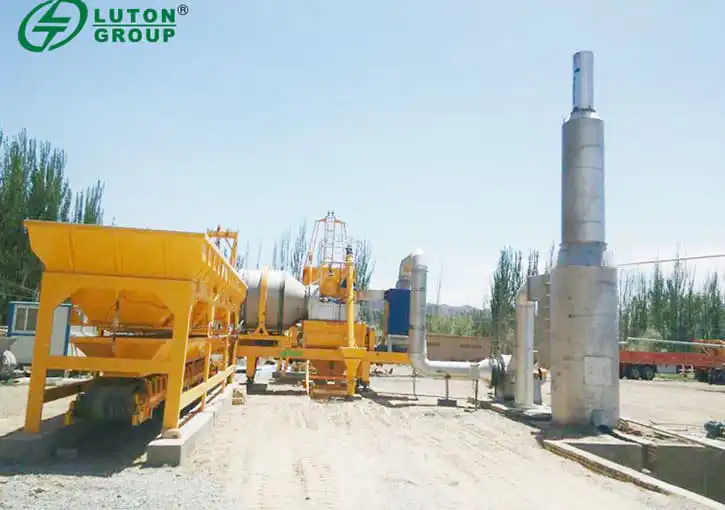

LYJ40 Mini Portable Asphalt Batching Plant
Exported to 20 Areas
40t/h
Capacity
5mยณx3
Feeding System
9t
Finished Asphalt Storage Bin
120-180โ
Asphalt Temperature
Large Stock
Ready for Shipment
LYJ60 Mini Mobile Asphalt Batching Plant
Exported to 20 Areas
60t/h
Capacity
5mยณx3
Feeding System
9t
Finished Asphalt Storage Bin
120-180โ
Asphalt Temperature
Large Stock
Ready for Shipment
LYJ80 Mini Mobile Asphalt Batching Plant
Exported to 20 Areas
80t/h
Capacity
5mยณx4
Feeding System
20t
Finished Asphalt Storage Bin
120-180โ
Asphalt Temperature
Large Stock
Ready for Shipment
Mobile Asphalt Mixing Plant

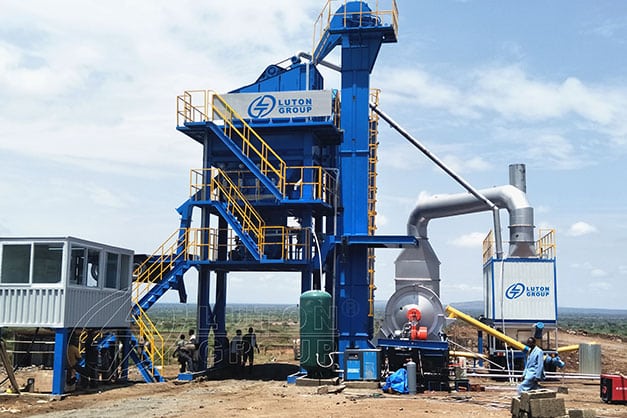

YLB800 Mobile Asphalt Plants
Hot Selling Model
60t/h
Capacity
4×6.5mยณ
Hopper Capacity
80t/h
Collect Belt Capacity
80t/h
Dryer Capacity
Large Stock
Ready for Shipment

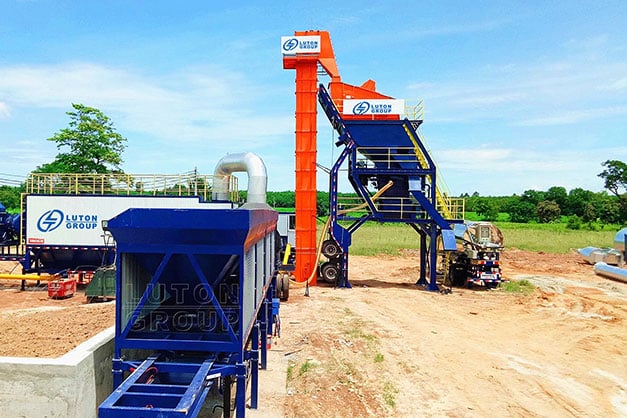

YLB1000 Mobile Asphalt Plants
Exported to 20 Areas
80t/h
Capacity
4×7.5mยณ
Hopper Capacity
100t/h
Collect Belt Capacity
100t/h
Dryer Capacity
Large Stock
Ready for Shipment
YLB1500 Mobile Asphalt Plants
Exported to 20 Areas
120t/h
Capacity
4×7.5mยณ
Hopper Capacity
140t/h
Collect Belt Capacity
140t/h
Dryer Capacity
Large Stock
Ready for Shipment

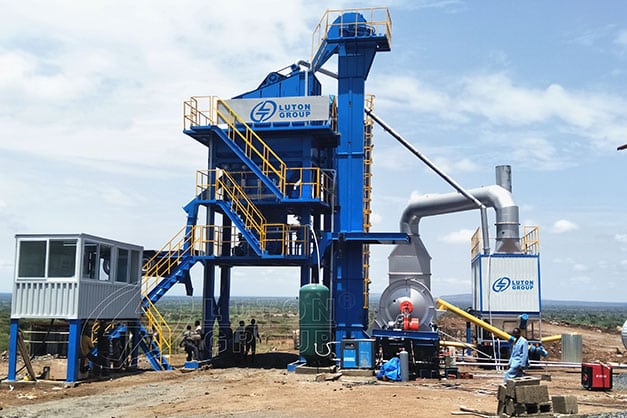

YLB2000 Mobile Asphalt Plants
Exported to 20 Areas
160t/h
Capacity
5x12mยณ
Hopper Capacity
200t/h
Collect Belt Capacity
180t/h
Dryer Capacity
Large Stock
Ready for Shipment

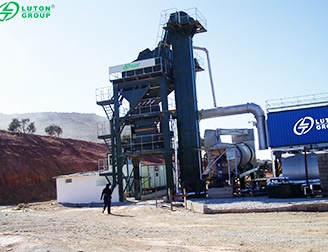

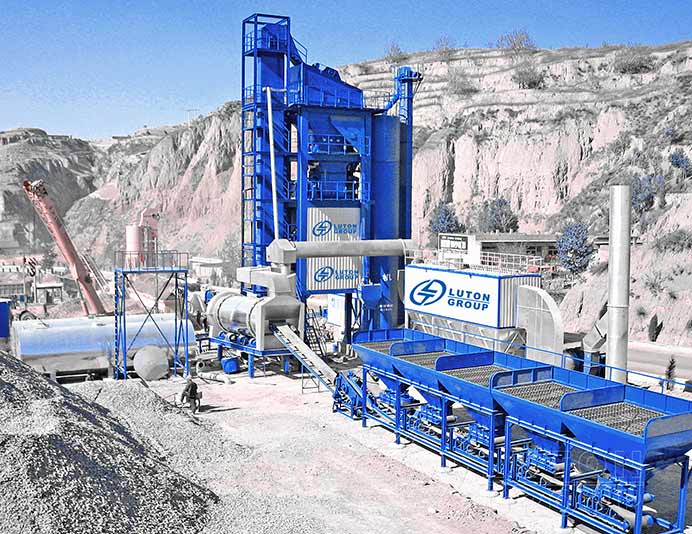

ONGOING RURAL OR URBAN CONSTRUCTION PROJECTS?
WE HAVE THE SOLUTION
Our asphalt mixing plant is ideal for both large-scale and small-scale urban road construction projects with high quality standards and is a complete set of equipment for mass production of asphalt mixtures.
Reach out to us to find your best asphalt plants to boost work efficiency.
Talk to Our Expert
Send Email to:info@lutongroups.com
FEATURES
Features of Asphalt Plants
Asphalt plants are integral to the construction industry, providing the necessary material for road construction and maintenance. Here are some of their unique features:
- Versatility: Asphalt plants are capable of producing various types of asphalt mixtures, catering to different project requirements. They can handle different grades of raw materials and create custom mixes, offering flexibility to the construction process.
- Efficiency: These plants are designed for high throughput, ensuring a steady supply of asphalt for large-scale projects. Advanced technology and automation in modern asphalt plants have further increased production efficiency, reducing the time required for mixing and heating processes.
- Environmental Friendliness: Modern asphalt plants are equipped with advanced pollution control systems. These systems minimize the emission of harmful gases and particulates, making the asphalt production process more environmentally friendly.
- Quality Control: Asphalt plants provide excellent control over the quality of the asphalt produced. They allow for precise control over the proportions of various ingredients, ensuring consistency in the quality of the asphalt mix.
- Portability: Some asphalt plants are designed to be portable, allowing them to be moved closer to construction sites. This reduces transportation costs and ensures a fresh supply of asphalt at the site, enhancing the efficiency of road construction projects.
- Integration with Recycling Systems: Many asphalt plants now integrate with asphalt recycling systems, allowing them to use reclaimed asphalt pavement (RAP). This not only reduces waste but also lowers the cost of materials, making the process more sustainable and cost-effective.
These features make asphalt plants a vital tool in the construction industry, enhancing efficiency, quality, and sustainability in road construction and maintenance.
Characteristic

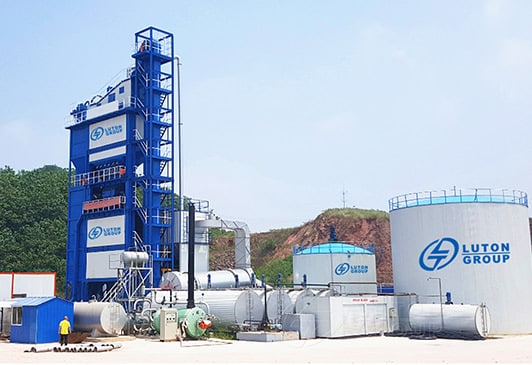

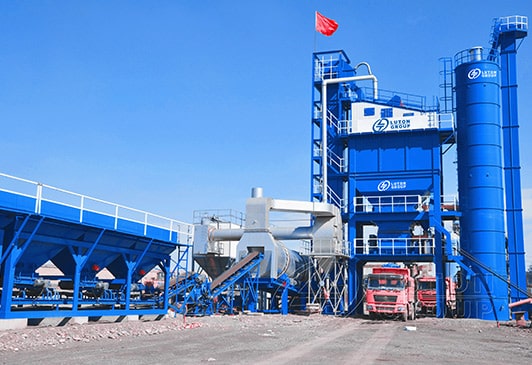

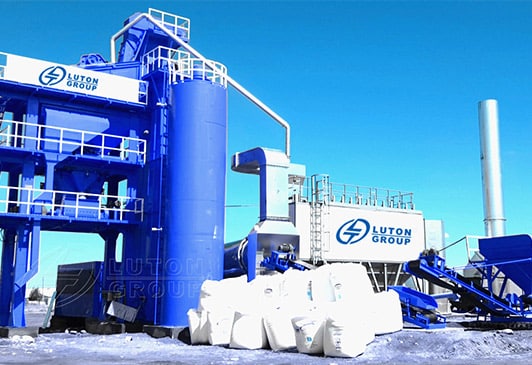

Luton Bitumen Plants Characteristic
Highly Efficient Proprietary Control System
The asphalt plants from LUTON come equipped with a highly efficient proprietary control system. This advanced system automates the entire production process, reducing the need for manual intervention and minimizing the chances of human error. It optimizes resource use, leading to a 30% reduction in mix production costs.
Moreover, the control system ensures precise measurement and mixing of ingredients, resulting in high-quality asphalt mixes that consistently exceed industry standards.

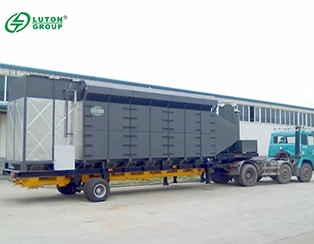

High Mobility

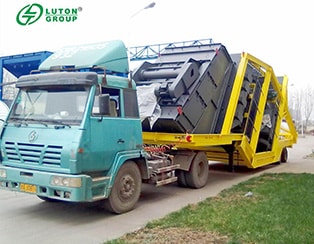

LUTON’s asphalt plants are designed with high mobility in mind. This allows for easy transportation and quick setup at different project sites, which is particularly beneficial for projects that require frequent relocations.
The high-mobility design eliminates the need for extensive disassembly and reassembly, saving time and reducing labor costs. This feature enhances the overall efficiency of construction projects and provides a competitive edge in the fast-paced construction industry.
Wide Ranges of Applications
Our asphalt plants are versatile and can be used in a wide range of applications. They are suitable for various projects, from small-scale road repair and maintenance to large-scale highway and airport construction projects.
This wide range of applications is made possible by the plant’s advanced control system, which allows for the production of different types of asphalt mixes. This versatility ensures that our customers can meet the specific requirements of any project, increasing their operational flexibility and project success rate.
ADVANTAGES

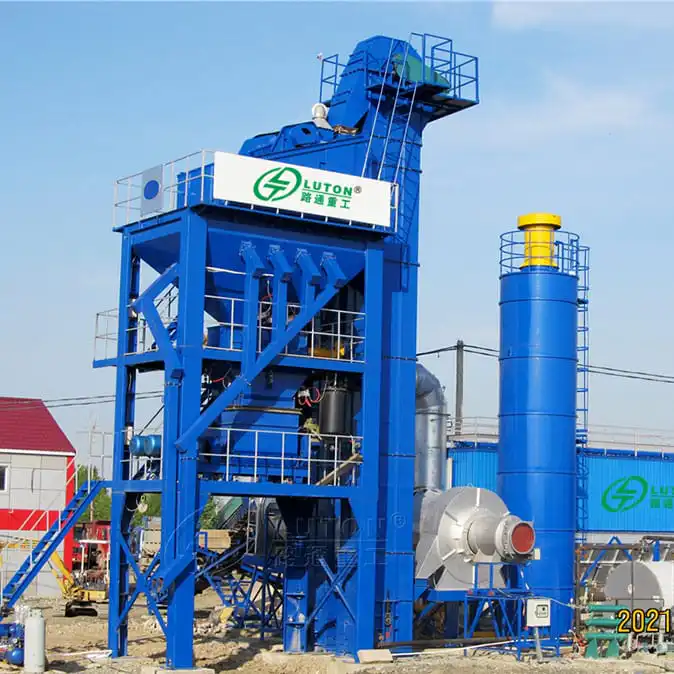

Advantages of Buying a Modular Asphalt Plant
For road construction companies and private customers who want to get an asphalt plant that functions smoothly and to be modernizable, it is necessary to choose the right technological complex. The plant will start up and pay for itself faster if you order equipment, installation and commissioning from the same company.
- A ready-made plant will cost less than a European production line with comparable capacity. Thus, our client will not overpay for the brand. Moreover, the Chinese enterprise will start generating profits in the shortest possible time.
- The units are compatible with each other because they are designed by the same engineering team, manufactured in the same production facility and conform to the same standard.
- Medium to high capacity plants are available. Our asphalt plant suppliers produce mobile and stationary plants with capacities of 80 t/h and higher.
- If standard projects are not satisfactory, you can custom. The price of an asphalt plant with an individual project will be higher, but the plant will be designed to meet the owner’s wishes and fit into his budget.
- Only 3-4 operators will be required to operate the units. The operation is almost intuitive, so personnel will not have to be trained for a long time.

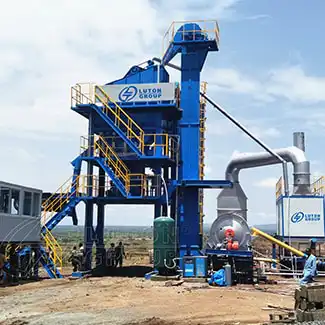

DETAILS
WE MAKE IT BEST IN EACH PART
Our asphalt plants stand out in both usage and design. Equipped with advanced automation systems, they ensure consistent quality and efficiency, reducing manual intervention and potential errors. The modular design allows for easy installation and maintenance, while also providing flexibility to adapt to different production requirements.
Furthermore, our plants are environmentally friendly, equipped with effective dust and emission control systems, reinforcing our commitment to sustainable practices.
320t/h
320t/h Large Capacity
30%
30% Less Laboring Costs
100%
100% Automatic Process
20%
20% Electricity Saved
Components

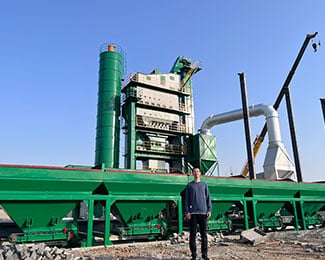

Components of Asphalt Mix Batching Plants

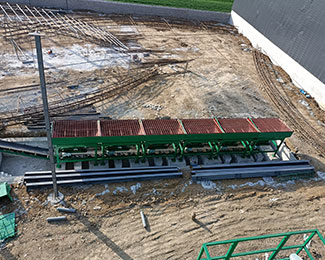

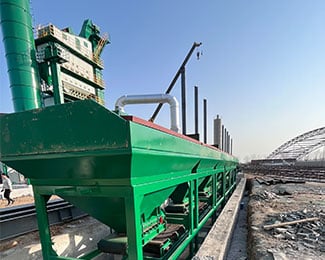

Cold Raw Material System
To obtain a high-quality asphalt concrete mixture, a uniform and precise supply of cold aggregates is required. Our conveyor feeder is equipped with a frequency converter, allowing you to change the speed according to the capacity and proportions.

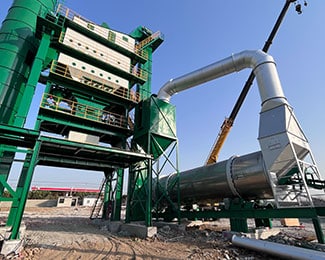

Drying System
- The drying drum is made of high-quality thermal insulation material and lined with stainless steel, which provides good thermal insulation properties. The entire design is neat and easy to understand.
- The inner blade of the filler is made from boiler steel, bolted together for long life and easy maintenance.
- The all-wheel-drive system provides smoother operation and lower noise levels.
- The roller and roller shaft are made of steel alloy, which promotes uniform thermal expansion of the cylinder. This design solves the problem of thermal cracks in the elastic plate.
Mixing System
- Features double shaft and double helix, long axis and short lever, shallow structure.
- The inner sleeve and blade are made of wear-resistant alloy steel for long service life.
- The unloading door is equipped with electric or thermal oil heating to prevent the material from sticking.
- Large sliding door design and fast unloading.
- The bi-directional spiral blade is capable of mixing materials in three dimensions.
- Top and bottom dividing structures for easy maintenance.
- Forced transmission synchronization. After synchronization, the mixing process begins.
- High strength and reliable double connecting chain.
- Four movable support legs are interconnected for ease of maintenance.
- The use of a gearbox from a world-famous brand, significantly reduces the failure rate.
Vibration System
- A specialized vibrating screen designed specifically for asphalt plants ensures better compliance.
- The highly wear-resistant 65 MN screening mesh has a long service life and reduces maintenance costs.
- The optimized protective screen effectively prevents dust from entering and is more environmentally friendly.
- The screen with a sliding design makes it easy to replace and makes the process quick and convenient.
- The roller-mounted front shield moves forward and backward easily.
Bucket Weighing System
- The high spray pressure of the asphalt pump ensures that the asphalt is distributed more evenly.
- The bitumen tank is equipped with an insulation device on the outside to prevent heat loss.
- The lower part of the tank is equipped with a heating device for thermal conductivity of the oil, which prevents the temperature of the bitumen from decreasing.
- Using a primary coarse measurement and a secondary fine measurement improves the accuracy of bitumen measurement.
- Bitumen pipes and pumps are heated using conductive oil.
Bitumen Supply System
The bitumen tank is strong and durable. Bitumen tanks of various sizes and capacities can be provided according to the client’s requirements. The bitumen tank is covered with an insulating layer of mineral wool and galvanized steel, which minimizes heat loss. The bitumen tank is heated using heat-conducting oil, which ensures that the bitumen temperature is maintained.

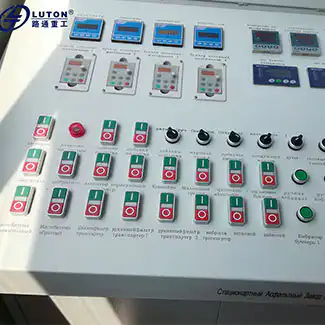

Electronic Control System
- PLC (Siemens). Runs under a professional operating system, ensuring stability and reliability.
- Global remote detection and diagnostics feature helps quickly resolve equipment system failures.
- Powerful data storage and processing capabilities, timely processing of various information, and hundreds of hierarchical storages.
- Manual and automatic compensation during measurement.
- Secondary measurement of bitumen.
- The container-like design makes the control room strong, durable, and easy to transport.
- Double glazing with heat and sound insulation, the control room is equipped with an insulating layer.
- Powerful two-temperature air conditioner.
- Professional stylus printer.
- Solid wood floor.
- Electrical components from Siemens.
- Siemens PLC (with remote detection and diagnostic function).
- Siemens weighing module.
- HP printer (stylus).
- HP industrial computer.
- A simple and clear screen with the simulation of operations.
Dust Collection System
- Combined with a primary gravity dust collector and a secondary baghouse dust collector.
- The dust collector uses high-voltage pulse cleaning, which reduces the amount of dust.
- The bag is made from highly efficient DuPont dust collection material, ensuring low loss and long service life.
- Recycled dust can be reused, reducing environmental pollution.
- The emission concentration does not exceed 20 mg/Nmยณ.
Reach Out to Us For More Gallery And Information!
Price
What Is Asphalt Plants Price?
The price of an asphalt plant is influenced by a variety of factors, making it a complex consideration. First and foremost, the capacity of the plant plays a significant role. Larger plants with higher production capacities tend to be more expensive due to the advanced machinery and technology involved.
The type of plantโwhether batch, drum mix, or continuousโalso impacts the price. Batch plants, which allow for precise control over the composition, are typically more expensive than drum mix or continuous plants.
Additional features such as pollution control systems, automation level, and energy efficiency can further add to the cost. However, these features can also provide longer-term savings by reducing operating costs and ensuring compliance with environmental regulations.
| Discharging Capacity(mยณ) | Approximately Price |
| Stationary Asphalt Plants | $55,000 – $1,000,000 |
| Mobile Asphalt Plants | $55,000 – $1,000,000 |
| Continuous Asphalt Mixing Plants | $55,000 – $1,000,000 |
| Simple Asphalt Plants | $55,000 – $1,000,000 |
| Mini Asphalt Plants | $55,000 – $1,000,000 |
COST
Cost of Running Asphalt Plants Project
We, among asphalt plant makers in China, have actually been expecting you to inform us of details of your project and your demands for the asphalt plant as long as feasible to make sure that we can design a brilliant total option for you.
The Kind of Asphalt Plant
Various kinds of asphalt plants, such as asphalt batch mix plant or asphalt drum mix plant, mobile asphalt plant or stationary asphalt plant, eco-friendly hot mix plant or standard warm mix plant, etc, have various performance as well as attributes, at the same time the price distinction between them is also huge.
The Capability of Warm Mix Plant
ou need to identify the capacity of the hot mix plant based upon the dimension of your project. Usually talking, amongst warm mix plants with the same type, the bigger the ability is, the higher the price is. If you are uncertain about the suitable capacity of a hot mix plant that satisfies the project dimension well, please feel free to call us and we will certainly establish an excellent option for you.
Comprehensive Arrangement for Asphalt Plant
You ought to take many things into account, for example, the number of aggregate hoppers you need to equip the asphalt plant, just how large the asphalt container attached with your asphalt plant needs to be, just how large the meshes of each vibrating screen requirement to be, if you require a cabin in which completed combination can be kept briefly or otherwise, whether ingredients are needed to satisfy your project, how many baghouse dust enthusiasts you wish to use in your asphalt plant, What brand names of the burner, rate reducers and also electric parts you are going to utilize, etc.
These components referred to above must be determined according to your project condition in addition to the efficiency needs you have for the asphalt plant you intend to purchase. Of course, the price differs as the arrangement modifications.
ADVANTAGES
FOR BUILDING CONSTRUCTION
Our asphalt plants offer superior efficiency, advanced automation, flexible design, and eco-friendly operation, ensuring optimal performance and value.
Controlling the asphalt plant with a proprietary process control system reduces the cost of mix production by 30%.
The quality of asphalt mixes produced exceeds current standards.
Reduced energy consumption of mixes and metal intensity of plants.
Fully automatic design to reduce labor costs.
Increased reliability and durability of plants thanks to LUTON’s own production and quality control at all stages.
Compliance with modern environmental requirements by reducing dust and gas emissions into the atmosphere.
SPECIFICATION
technical specification
Stationary Asphalt Plants
| Model | LB500 | LB800 | LB1000 | LB1200 | LB1500 | LB2000 | LB2500 | LB3000 | LB4000 |
| Output | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
| Cold Aggregate Feeding System | |||||||||
| Hopper Capacity | 4ร4.5mยณ | 4ร6.5mยณ | 4ร7.5mยณ | 4ร7.5mยณ | 4ร7.5mยณ | 5ร12mยณ | 5ร12mยณ | 5ร12mยณ | 6ร15mยณ |
| Collect Belt Capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 200t/h | 220t/h | 280t/h | 360t/h |
| Aggregate Dryer | |||||||||
| Dryer Size | ฯ1.2mร5.2m | ฯ1.5mร6m | ฯ1.5mร6.7m | ฯ1.65mร7m | ฯ1.8mร8m | ฯ2.2mร9m | ฯ2.6mร9m | ฯ2.6mร9.5m | ฯ2.8mร10.2m |
| Dryer Capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h | 240t/h | 260t/h | 360t/h |
| Fuel Consumption | 70-300kg/h | 100-400kg/h | 120-600kg/h | 150-1000kg/h | 150-1000kg/h | 150-1400kg/h | 180-1800kg/h | 180-1800kg/h | 260-2500kg/h |
| Mixing Tower | |||||||||
| Vibrating Screen (Layer) | 4 layer | 4 layer | 4 layer | 4 layer | 4 layer | 5 layer | 5 layer | 5 layer | 6 layer |
| Aggregate Metering hopper | 500kg | 800kg | 1000kg | 1300kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Mineral Flour Metering Hopper | 120kg | 150kg | 200kg | 200kg | 300kg | 300kg | 320kg | 600kg | 700kg |
| Bitumen Metering Hopper | 100kg | 120kg | 150kg | 150kg | 250kg | 250kg | 250kg | 480kg | 500kg |
| Mixer Capacity | 500kg | 800kg | 1000kg | 1250kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Cycle Time | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
Continuous Type Asphalt Plants
| Model | LBD-20 | LBD-40 | LBD-60 | LBD-80 | LBD-100 | |
| Output | 20t/h | 45t/h | 60t/h | 80t/h | 100t/h | |
| Power | Fuel Oil | 34kw | 65kw | 105kw | 135kw | 170kw |
| Burning Coal | 40kw | 75kw | 120kw | 165kw | 200kw | |
| Cold Aggregate Feeding System | 3.5mยณร1 | 4mยณร4 | 4mยณร4 | 6.5mยณร4 | 6.5mยณร4 | |
| Finihsed AsphLBD- Storage Bin | 3t | 3t | 7t | 7t | 9t | |
Mobile Batch Asphalt Plants
| Items | LBQY-60 | LBQY-80 | LBQY-100 | LBQY-120 | LBQY-160 |
| Plant Capacity | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h |
| Cold Aggregate Feeding System | |||||
| Hopper capacity | 4 x 4.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 5 x8m3 |
| Belt capacity | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h |
| Drying System | |||||
| Drying drum size | 1500x6000mm | 1500x6600mm | 1500x6600mm | 1800x8000mm | 1900x9000mm |
| Drying capacity | 60-80t/h | 80-100t/h | 100-120t/h | 120-140t/h | 160-180t/h |
| Burner (oil) | 60-400kg/h | 60-600kg/h | 100-1000kg/h | 100-1000kg/h | 140-1400kg/h |
| Fuel consumption (oil) | 6-7kg/t | 6-7kg/t | 6-7kg/t | 6-7kg/t | 6-7kg/t |
| Mixing Tower | |||||
| Screen | 4 layers | 4 layers | 4 layers | 4 layers | 4/5 layers |
| Aggregate weighing | 3x800kg | 3x1000kg | 3x1500kg | 3x1500kg | 3x2000kg |
| Bitumen weighing | 3x80kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg |
| Filler weighing | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg |
| Mixer capacity | 800kg | 1000kg | 1300kg | 1500kg | 2000kg |
| Mixing cycle | 45s | 45s | 45s | 45s | 45s |
| Dust Collecting System | |||||
| Bag house filtering | 300m2 | 380m2 | 400m2 | 500m2 | 550m2 |
| Exhaust Fan power | 30kw | 45kw | 55kw | 2x45kw | 2x55kw |
| Asphalt Temperature | 140-180 โ | 140-180 โ | 140-180 โ | 140-180 โ | 140-180 โ |
| Finished Asphalt Silo (Optional) | 15 ton | 30 ton | 30 ton | 30 ton | 60 ton |
| Total Power | โ185kw | โ270kw | โ300kw | โ390kw | โ500kw |
Mini Mobile Asphalt Plants
| Model | LYJ-10 | LYJ-15 | LYJ-20 | LYJ-30 | LYJ-40 | LYJ-60 | LYJ-80 | |
| Output | 10t/h | 15t/h | 20t/h | 30t/h | 40t/h | 60t/h | 80t/h | |
| Power | Fuel Oil | 48kw | 59kw | 68kw | 106kw | 132kw | 146kw | 186kw |
| Burning Coal | 67kw | 78kw | 91kw | 129kw | 170kw | 192kw | 262kw | |
| Cold Aggregate Feeding System | 3mยณร3 | 3mยณร3 | 3mยณร3 | 5mยณร3 | 5mยณร3 | 5mยณร3 | 5mยณร4 | |
| Finihsed Asphalt Storage Bin | 2t | 5t | 5t | 9t | 9t | 9t | 20t | |
| Asphalt Temperature | 120-180โ | |||||||
| Fuel Consumption | Fuel Oil | 5-7.5kg/t | ||||||
| Burning Coal | 13-15kg/t | |||||||
| Option | Water Dust FilterใBag Dust FilterใContol RoomใAsphalt Heat TankใMineral Flour Tank | |||||||
PROJECTS
Our Products On Worksite
CHOOSE
How to Choose An Asphalt Plant?
Navigating the numerous options of asphalt plants can be challenging. This guide will help you make an informed decision.
Figure out the Usage and also Kind Of Asphalt Mix Plant
Figure out the usage and also kind of asphalt mix plant, first of all, based upon project requirements as shown below:
- If the project is a large as well as state-of-the-art brand-new road, LB asphalt batch mix plant or mobile asphalt batching plant ought to be chosen; if the range is little, no ingredients are needed, and also the grade is not that high, you can pick LBD asphalt drum mix plant.
- It is better to select mobile asphalt mix plant or mobile asphalt mix plant if the road project has long gas mileage and also a slim road surface area, and also requires an asphalt mix plant to move a number of times in a short time. If the mileage of the target sector you are taking on is not particularly long, the road surface is more than 4 lanes in both instructions, the repaired asphalt batch mix plant or asphalt drum mix plant is more suitable.
- LBD asphalt drum mix plant and small portable asphalt plant will certainly be enough if some little pits on the old road need to be repaired.
- If the project is in a hilly area, the installation room is limited, small-capacity mobile asphalt mix plant is a clever choice, such as the mini asphalt drum mix plant as well as small mobile asphalt plant.
- If the location of the asphalt plant is very far from the building and construction site of the project, it is best to compute the time needed for the lorry running with a complete lot of the completed combination from the plant to the building website during optimal hrs. If the moment is as well long, a mobile mix plant is recommended.
Establish the Ability of the Asphalt Mix Plant
Given the range of the project, calculate the ordinary outcome per hour of the mixing plant. If the estimation result is 40 heaps, you need to pick a mixing plant with a capacity of 50tph or 60tph. If the outcome in 8 working hours should get to 3,000 heaps, it is best to pick a plant with a capability of 400tph. The excellent asphalt mixing plant has the ability to run at 80-90% capability the majority of the moment.
It is incredibly easy for a large-capacity asphalt mix plant to fill up the completed blend cabin. It has to be closed down at this time to leave time for the transportation vehicle to empty the finished blend cabin, which will certainly minimize production effectiveness and also raise costs. Small-capacity asphalt mixing plant does not have such issues.
Establish Whether It Can Fulfill Regional Road Building And Construction Criteria, Environmental Management and Energy Saving Demands
Different countries, as well as regions, have different road construction requirements. For instance, the fragment dimension of chilly products made use of for paving is clearly specified in the specification, according to which the mesh size of the displays requires to be adjusted. Different nations and regions additionally have different environmental management and energy conservation standards. If it fails to meet the standards, it may need to birth the threat of being purchased to shut down. Hence a green asphalt mix plant is costly, yet in the long-term, the financial investment advantages are a lot more excellent.
Identify The Cost Range
The purchase budget plan directly establishes the capability as well as the type of asphalt mix plant you can choose. In order to completely determine the budget or make full use of the budget plan, you have to take into consideration the cost-effectiveness of different types of asphalt mix plants manufactured by various suppliers.
Asphalt mix plant contains a number of systems, such as cool material supply system, drying out system, lifting system, evaluating system, weighing system, dust elimination system, control system, etc. So you can about determine the cost variety of your personalized plant by accumulating the price of the core components of each system.
SOLUTION

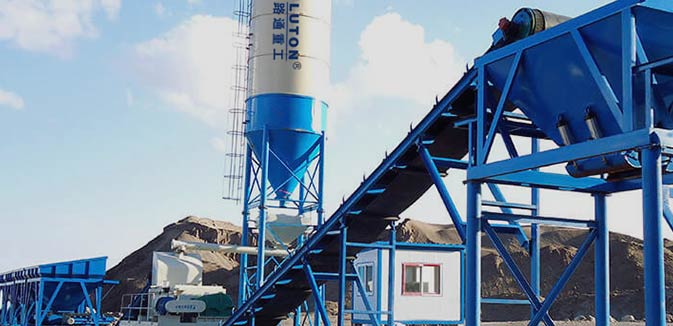

SUPPORTING FACILITIES – Stabilized Soil Mixing Plants
Stabilized Soil Mixing Plants (SSMPs) and asphalt plants, when combined, can significantly enhance operational efficiency and cost-effectiveness. SSMPs prepare a robust base for roads by uniformly mixing various materials, thus ensuring high-quality road construction.
When coupled with an asphalt plant, the process becomes streamlined, as the prepared base can be immediately overlaid with asphalt. This reduces the waiting time between base preparation and asphalt laying, leading to faster project completion.
LUTON
WE ARE THE BEST IN CONSTRUCTION
Founded in 1999, LUTON GROUP CO., LTD, as a joint stock company, has more than 25 years of exporting experience in manufacturing concrete plants, asphalt plants, self-loading mixers, crushers, dry mortar plants and various types of construction machinery.
100+
100+ Countries Exported
30,000+
30,000+ Mixers Sold
20+
20+ Years of Experience
100%
100% Quality Guaranteed
TESTIMONIAL
Happy Customers
The asphalt plant we purchased has exceeded our expectations. Its high efficiency and automated systems have significantly increased our productivity. Truly a game-changer for our construction business.
Aboo Thahir
Purchase Manager
We are impressed with the eco-friendly features of your asphalt plant. It not only meets but surpasses environmental regulations, making us confident in our investment.
Ashutosh Siddharth kumar
Project manager
The flexibility and reliability of your asphalt plant have been remarkable. It’s easy to operate, and the after-sales service has been exceptional. It works smoothly! Highly recommended!
Hanipale Malae
Project manager
CASES
Latest Global Cases
September 06, 2023
Continuous Asphalt Plant Exported to Myanmar
September 16, 2023
LB800 Asphalt Plant Working in Kazakstan
January 18, 2023
LB800 Asphalt Plants Working in Malaysia
November 28, 2023
LB1000 Series Asphalt Plants In Russia
May 27, 2023
LB1200 Series Asphalt Plants in Indonesia
October 25, 2023
LB2000 Asphalt Plants Working in Malaysia
September 20, 2023
LB3000 Series Asphalt Plant in Malaysia
January 15, 2023
LB4000 Asphalt Plant Working in Russia
March 09, 2023
Mobile Asphalt Plants Working in Tajikistan
SHIPMENT
Our Shipment Process
Process
At every step of our shipment process, our dedicated team takes great care to ensure that your order is handled with the utmost professionalism and attention to detail. We understand the importance of your satisfaction, and we strive to exceed your expectations with every shipment.
Order
24 online for your order
Production
Pick from stock or produce
Package
Well packed and labeled
Shipment
7 days fast delivery
EQUIPMENT
