Self Loading Concrete Mixer On Luton Group
Narrow 47% of your budget on concrete discharging. Fast feeding, efficient mixing, automated discharging – grab Luton self loading concrete mixer for sale with competitive price for a brilliant performance.
Fast investment return & lower laboring costs. Start from $14,000 to enjoy quality equipment.
КАЧЕСТВО
WE PROVIDE THE BEST QUALITY SELF LOADING MIXER AND EXCELLENT SUPPORT SERVICE
Luton self-loading concrete mixer is a device that can self-load aggregates, weigh the batch, mix concrete, transport, and area it any place called for. It is therefore a stand-alone machine that can complete the concrete mixing job by requiring a single person to operate the device.
Our self loading mixers are designed to comply with industry standards and regulations, and we test each unit thoroughly before it leaves our factory to ensure that it meets our strict quality control standards.
We provide timely assistance to resolve any issues and ensure that our customers can continue to operate their mixer without any interruptions.
Инвестиции
Why Invest In Luton Self Loading Concrete Mixer?
Based on authoritative statistics relating to the worldwide ready mix concrete market and construction projects, the demand for ready mix concrete rises to $2201 million by 2026, from 1242.4 million in 2020. That indicates the entire market, for the following several years, will face thriving needs, especially for developing countries. Concrete processing machines and plants in India, the Philippines, Pakistan, South Africa, and Sri Lanka, are accordingly meant to raise their prices, making it necessary to obtain and invest self loading mixers with competitive prices.
Besides, with the higher demand for high-grade concrete, the concrete plant prices will rise in the near future, bringing tougher conditions for those who lack the budget. The cheaper substitute – self loading mixer truck, owns a higher investment value to some extent.
That is why you should and must invest Luton self loading concrete mixer truck, with high performance and delicate design, you will get a fast return on your investment within one year! Just call us to start your business now!
МОДЕЛИ

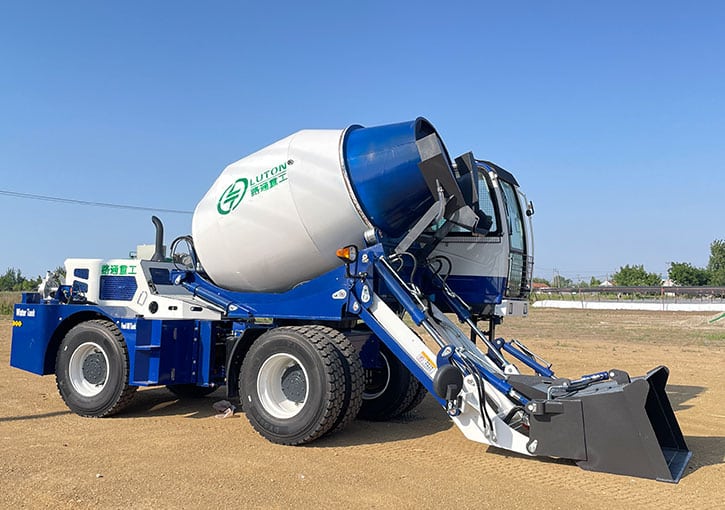

Luton Self Loading Concrete Mixer For Sale
Large capacity with simple design, Luton self loading concrete mixer offers a maximum of 6.5m³ capacity, meeting both small and large construction demands.

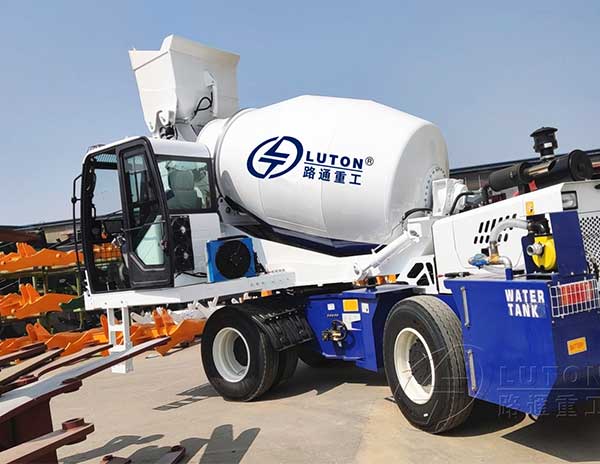

Self Loading Mixer Truck
LT 1.2m³ Self Loading Mixer
Лучший продавец
1.2m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке
LT 1.8m³ Self Loading Mixer
Горячие продажи модели
1.8m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке
LT 2.6m³ Self Loading Mixer
Горячие продажи модели
2.6m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке
LT 3.5m³ Self Loading Mixer
Highly Recommend
3.5m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке
LT 4m³ Self Loading Mixer
В продаже
4m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке
LT 5.5m³ Self Loading Mixer
Upgraded Model
5.5m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке
LT 6.5m³ Self Loading Mixer
For Remote Worksite
6.5m³
Вместимость
16L
Резервуар для масла
4 вперед 4 назад
Переключение передач
270°
Вращение барабана
Большой запас
Готовность к отправке

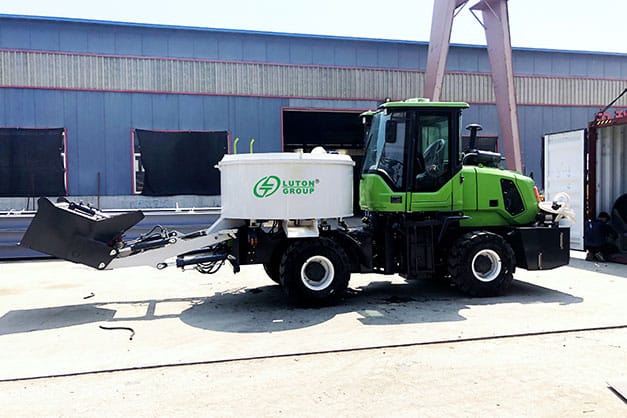

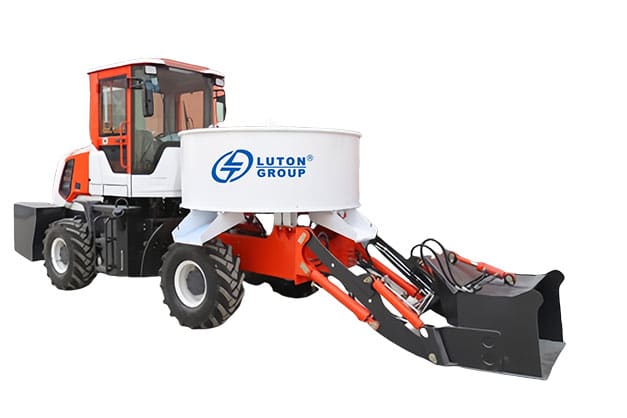

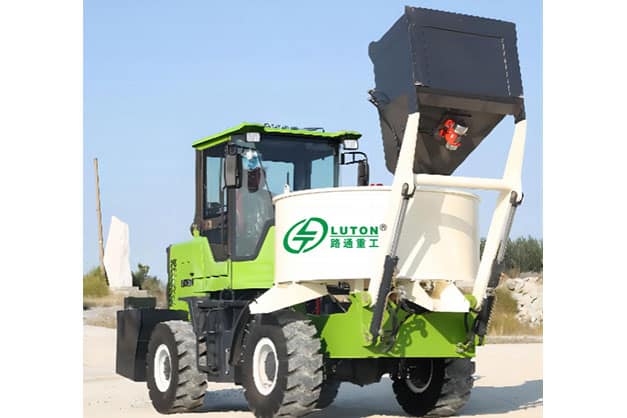

Self Loading Pan Mixer
LTP 1.2m³ Self Loading Mixer
Горячие продажи модели
1.2m³
Вместимость
8-20 (R/M)
Скорость вращения барабана
55 ~ 60KW
Номинальная мощность
4 вперед 4 назад
Переключение передач
Большой запас
Готовность к отправке
LTP 1.6m³ Self Loading Mixer
Экспорт в 20 областей
1.6m³
Вместимость
8-20 (R/M)
Скорость вращения барабана
76 ~ 78 КВТ
Номинальная мощность
4 вперед 4 назад
Переключение передач
Большой запас
Готовность к отправке
LTP 2.0m³ Self Loading Mixer
Save 10% Overall Cost
2.0m³
Вместимость
8-20 (R/M)
Скорость вращения барабана
76 ~ 78 КВТ
Номинальная мощность
4 вперед 4 назад
Переключение передач
Большой запас
Готовность к отправке

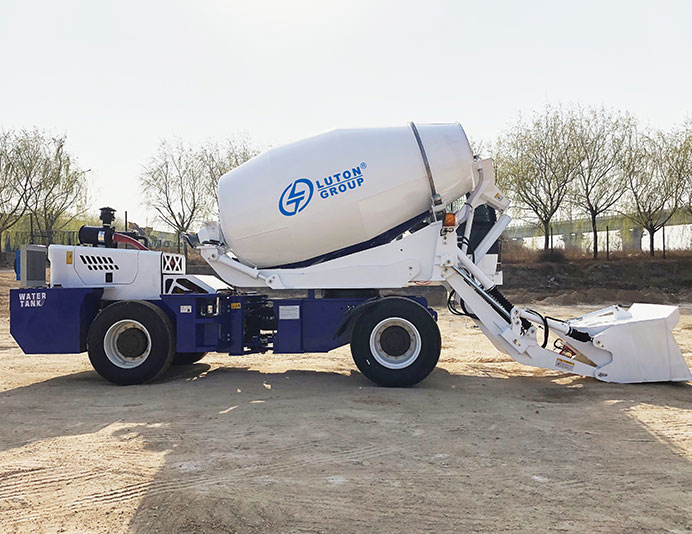

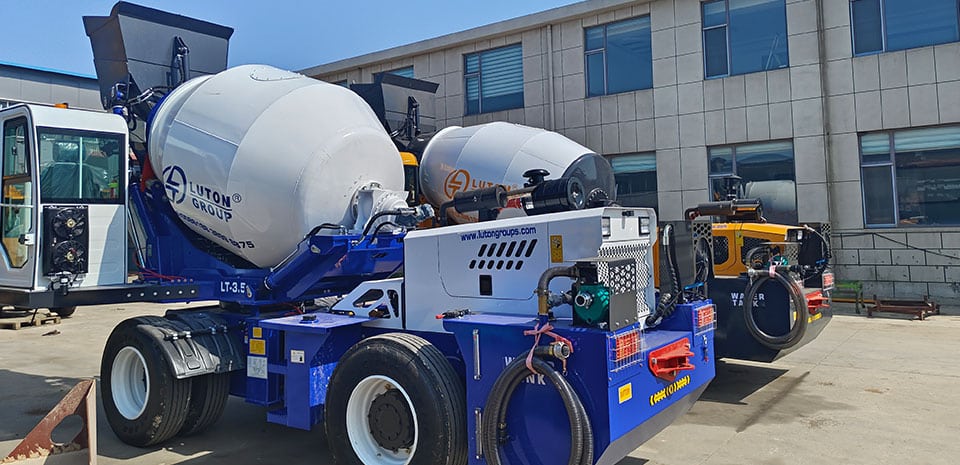

ТЕКУЩИЕ ПРОЕКТЫ СТРОИТЕЛЬСТВА В СЕЛЬСКОЙ ИЛИ ГОРОДСКОЙ МЕСТНОСТИ?
МЫ ИМЕЕМ РЕШЕНИЕ
All kinds are highway as well as all-terrain devices that are commonly utilized in the construction of canals, household, industrial, commercial structures, as well as other construction applications.
Reach out to us to find your best self loading concrete mixer truck to boost work efficiency.
Поговорите с нашим экспертом
Отправить электронное письмо:info@lutongroups.com
ОСОБЕННОСТИ

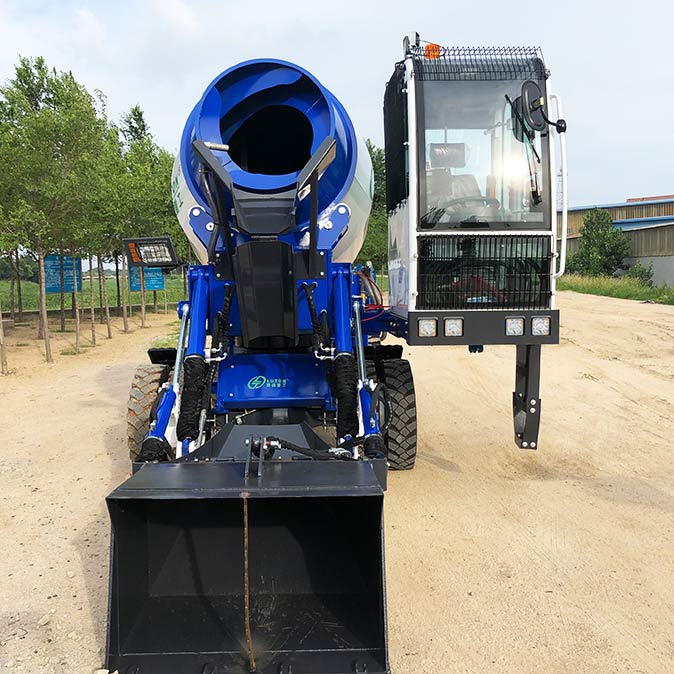

Features of Self Loading Concrete Mixer
One of the important functions of a self-loading mixer is its easy procedure. Because of its self-loading layout, it can automatically generate as well as carry concrete on-site.
Various other functions of a self mixing concrete truck are stated listed below.
- A self-loading concrete mixer is a multi-functional machine that can self-loading all the concrete ingredients, mix, transport, and discharge.
- Self loader mixer usually possesses a four-wheel-drive system that gives high traction to help the machine work in very soft clay site conditions.
- It has a hydraulic-driven drum that provides high turning that assists in reliable mixing procedure. Once the mix is ready the drum can be lifted for fast and also reliable discharge of concrete.
- The self concrete mixer machine has a steel bucket that makes it possible for the operator to load resources to the drum.
- The loading and also blending operations, the speed, and direction of the drum are all regulated from the cabin of the vehicle
- A self loading transit mixer can be quickly packed in big vehicles and also delivered to any kind of long-distance construction site. This feature makes it suitable for little, slim, and isolated building and construction sites.
Characteristic

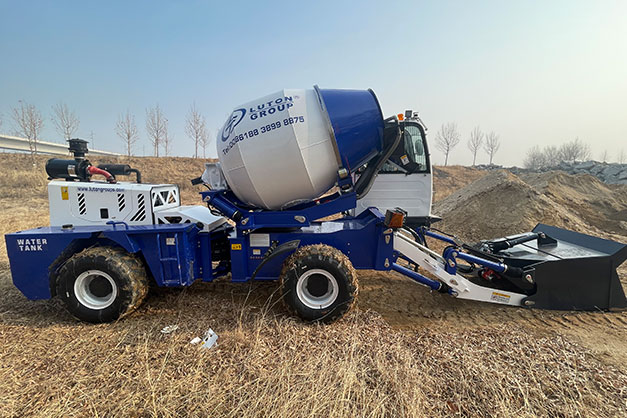

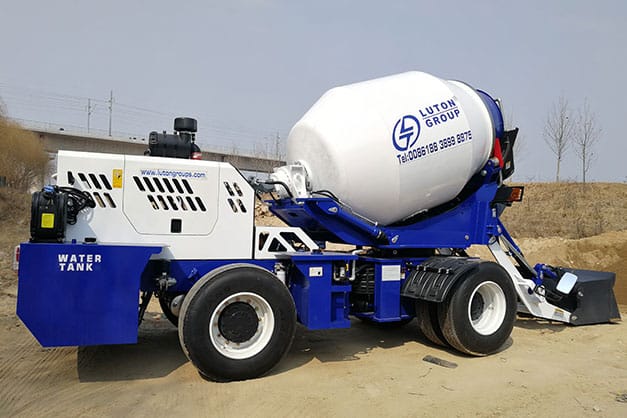

Luton Self Loading Concrete Mixer Characteristic
4 in 1 Machine Design
Luton Self loading concrete mixer truck can replace an electrical generator, materials mover, wheel loader, and also concrete mixer. It can stir while moving, concerning 1 to 2 minutes, the concrete mixture will be finished equally.
Meanwhile, it can make the blending drum revolve concerning 90 levels left and right, and also discharge from different angles, which displaces the traditional blending technique as well as conserves the device’s expense.
Automatic Mixing System
Aggregate and cement enter into the mixing cylinder of self concrete mixer and also mix with water flow in the water container, a unique “T” kind twin-screw make sure the top quality of concrete(if required, can be outfit with an electronic weighing system.
Blending speed is fast, one hopper per minute, in addition, mix when carrying on the road, which will save much time, when surface the feeding, the driver can directly drive to the discharge location, in the process of driving, the concrete will be produced.
Automatic Feeding System
Our self loading mobile concrete mixture uses a distinct hinged hydraulic shovel, which can load the application precisely; blades inside the container can instantly remove the concrete bag as well as in case of the waste of raw materials; all applications can become part of the blending cylinder from the pail efficiently and promptly.
In this manner replaces the standard feeding method, on the one hand, conserves the expense of purchasing a wheel loader, on the other hand, decreases environmental pollution and also can attain maximum use materials area.
Feeding time is faster and also feeding accuracy is a lot more precise.
принцип
Working Principle of Self Loading Concrete Mixer
The complete concrete mixing procedure can be performed by a single operator. Originally, concrete is displaced by hand in the bucket, and also water is fed right into the drum. Its one-of-a-kind bucket packing operation gathers sand and also accumulations load the turning drum promptly as well as efficiently.
The high-speed turning drum makes sure to offer a homogenous concrete mix, which can be moved as well as positioned wherever needed. For this reason, self-loading concrete mixer lowers extra labor as well as concrete transport expense.
- All the operations can be run by drivers in the drivers’ cab. Drivers can press various buttons to do different steps. And the display will show the weight of every type of raw material.
- The driver drives the self loading transit mixer concrete mixer machine to the stacking area of materials and puts all the raw materials including sand, stone, required by manufacturing right into the mixing drum with the bucket, and the mixing drum starts to mix all the materials, after finished concrete mixing, the operator will send the concrete combination to the marked building website, during the transportation, the mixing drum will certainly keep mixing the concrete in case the concrete blend will ice up.
- It can work without a power supply, due to the fact that the entire machine will provide a sustainable source of power. In some special building projects, which is away from industrial concrete batching plant, such as maintenance of concrete pavement roadway, bridge-tunnel building and construction, area degree freeway building, building and construction of protection facilities, high-speed train construction, upkeep of plant or structure flooring building, and so on, it will be geared up with onboard lighting system, as well as can attain 24-hour’ building and construction work and improve the functioning effectiveness.
- Furthermore, as one of the most trustworthy self loading concrete mixer providers, we will offer customers the most effective service of concrete mixing, delivering, and also putting.
ПОДРОБНОСТИ
МЫ ДЕЛАЕМ ЕГО ЛУЧШИМ В КАЖДОЙ ЧАСТИ
3 in 1 self loading concrete mixer beats over costly concrete mixers in making the concrete mixing and transporting easier, and wins in narrowing your electricity bills to large extent.
From aggregate feeding, batching to concrete mixing, enjoy the fully automatic process to fasten 25% of your construction speed without improving unnecessary costs.
270°
270° Free Rotation design
30%
30% Меньше трудозатрат
100%
100% Автоматический процесс
20%
20% Сэкономленная электроэнергия

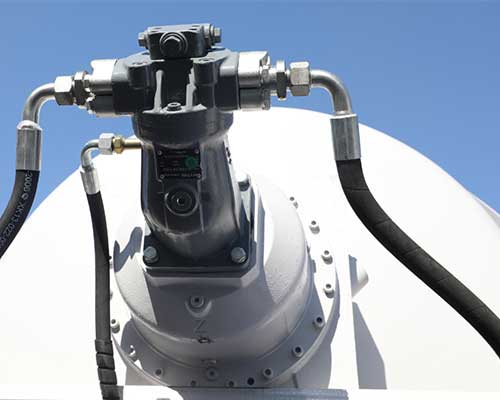

Components

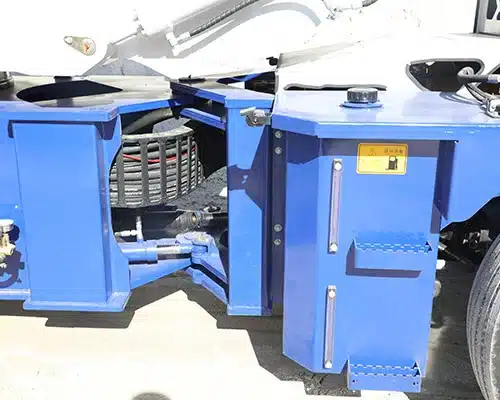

Components of Self-loading Cement Mixer Truck
Packing System
The packing system in a self-loading concrete mixer includes a hydraulic shovel plan to pack the material quickly and accurately. A few of the makes offer shovels with a blade which enables to cut the concrete bags while packing. The hydraulic system capabilities vary depending upon the load-bearing ability of the mixer.
Evaluating System
The evaluating system in a self loading mobile concrete mixer consists of computerized considering tools that regulate as well as present the weight of the material
Mixing System
The mixing system in the self propelled concrete mixer assists in the blending of aggregate as well as concrete fed to the blending drum with water offered from an independent water system or through a hands-on supply. This blending drum is invigorated by a completely powered engine to deliver a uniform blend and quality concrete.
Releasing System
The discharging system in the self feeding concrete mixer provides an option for the driver to discharge the concrete mix at different angles and also heights. The discharge system can be adjusted by the operator by regulating the blending drum angles to provide discharge in numerous elevations. The change of drum angles can be done by a handle shank in the operator cabin.
Wheel System
The self-loading mixer comes with a 4-wheel drive wheel system which makes it possible for the operator to manure with the toughest terrains in the building and construction site extremely quickly. These mixers are outfitted with high-resistant engineering tires.
One of the important functions of a self-loading mixer is its easy procedure. Because of its self-loading layout, it can automatically generate as well as carry concrete on-site.
3 in 1 self loading concrete mixer beats over costly concrete mixers in making the concrete mixing and transporting easier, and wins in narrowing your electricity bills to large extent.
Свяжитесь с нами для получения дополнительной информации!
Цена
What Is Self Loading Concrete Mixer Price?
The basic prices of a self loading concrete mixer range from $10,000 to $40,000, based on the capacity you require. Being a functional machine that combines feeding, mixing, and discharging together, self loading concrete mixer takes on the role of a small concrete plant, thus it is an ideal choice for the one lacking a budget but in urgent need of such a machine for small construction projects.
Though self loading mixer prices are far cheaper than that of a concrete plant, you still need to consider the additional costs, including material costs, workers’ earnings as well as expenses of insurance policy, etc.
Among various types of self loading mixers, despite their unique design, the discharge capacity of the machine is the priority consideration you should make. Common capacity lies in the range of 1.2 to 6.5m³, the larger capacity, the higher prices, yet the higher-end needs it meets.
| Discharging Capacity(m³) | Примерная цена |
| 1.2m³ Self Loading Mixer | $14,000 – 70,000 |
| 1.8m³ Self Loading Mixer | $14,000 – 70,000 |
| 3.5m³ Self Loading Mixer | $14,000 – 70,000 |
| 4m³ Self Loading Mixer | $14,000 – 70,000 |
| 5.5m³ Self Loading Mixer | $14,000 – 70,000 |
| 6.5m³ Self Loading Mixer | $14,000 – 70,000 |
СТОИМОСТЬ
Cost of Running Self Loading Concrete Mixer Project
Apart from purchasing prices, the additional expenses also affect overall costs, including types, capacity, and raw material costs, along with laboring costs and insurance charging costs. Here are some critical considerations that must be accounted for in detailing your investment value.
Discharging Capacity
Normal discharging capacity fits common construction demands is from 1.2m³ to 6.5m³, some higher goes 7 or 8m³, mainly serves for particular large construction projects.
Smaller one like building roads or bridges is compatible well with 1.2m³ or 2/3m³ self loader mixer, the prices of each are undoubtedly lower. While the larger projects like house construction require a higher capacity range, or else the timelines of production will be extended.
Models and Designs
The basic functions of self loading concrete mixers are feeding, mixing, and transporting, yet the design of each manufacturer affects a lot of working efficiency. Simpler operation means lower learning costs.
Laboring Costs
Compared with concrete plants, laboring costs of self loading mixer are quite low, for one person is able to handle the machine from feeding to transporting. And this cost can be further narrowed because no special skill is needed to operate it.
Various Operation Costs
Raw material purchasing costs and electrical power costs should also be considered in your investment.
АДВАНТАЖИ
ДЛЯ СТРОИТЕЛЬСТВА ЗДАНИЙ
Self-loading concrete mixer can self-load, mix as well as discharge concrete at different heights and angles– Enabling long-time efficiency and cost-saving.
Self-loading concrete mixture for sale can rotate 270 degrees
Self load, meter, mix, and discharge
Компактная структура и легкое перемещение - рулевое управление на четырех колесах;
High working efficiency and less energy consumption;
High stirring quality and short stirring time.
The main hydraulic components are imported!
At least 5 workloads are saved per day!
Save electricity 100 degrees every day without a blender!
СПЕЦИФИКАЦИЯ
техническая спецификация
Самозагружающийся миксер
| Equipment Model | LT-1.2 | LT-1.8 | LT-2.0 | LT-2.6 | LT-3.5 | LT-4.0 | LT-5.5 | LT-6.5 |
| Емкость разряда | 1.2m3 | 1.8m3 | 2m3 | 2.6m3 | 3.5m3 | 4m3 | 5.5m3 | 6.5m3 |
| Output/Capacity | 5-10m3/h | 8-12m3/h | 10m3/h | 11-17m3/h | 14-18m3/h | 16-20m3/h | 22-25m3/h | 26-30m3/h |
| Engine Model | YUNNEI supercharged engine | Yuchai 4102 Turbo-charged | Yuchai 4102 Turbo-charged | Yuchai 4102 Turbo-charged | Yuchai 4105 Turbo-charged | Yuchai 4108 Turbo-charged | Yuchai Turbo-charged | Weichai deutz 6105 Pressure boost |
| Номинальная мощность | 58KW | 78KW | 78KW | 78KW | 85KW | 91KW | 92KW~110KW | 92KW~110KW |
| Gear | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад |
| Oil tank | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters | 16 liters |
| Water tank | 400L | 500L | 500L | 500L | 620L | 660L | 860L | 1465L |
| Water supply | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay | Time relay |
| Overall dimensions(L*W*H) | 6400*2550*2450 | 7300*2650*3750 | 7300*2650*3750 | 7800*2720*3000 | 7800*2720*3300 | 7500*2800*3600 | 8450*3100*4580 | 8450*3050*3860 |
| Curb Weight (kg) | 4185 | 6500 | 6500 | 6500 | 7200 | 8500 | 11200 | 12520 |
| Drum rotate | 270º | 270º | 270º | 270º | 270º | 270º | 270º | 290º |
Self Loading Pan Mixer
| Equipment Model | LTP-1.2 | LTP-1.6 | LTP-2.0 |
| Engine Model | CHANGFA490 TURBO-CHARGED | YUNNEI 4102 | YUNNEI 4102 |
| Номинальная мощность | 55-60kw | 76-78kw | 76-78kw |
| Drum speed (R/M) | 8-20 | 8-20 | 8-20 |
| Gear box model | ZL-265 power shift gearbbox | ZL-265 power shift gearbbox | ZL-265 power shift gearbbox |
| Gear | 4 вперед 4 назад | 4 вперед 4 назад | 4 вперед 4 назад |
| Total hydraulic system capacity | 60 liters | 60 liters | 60 liters |
| Oil tank | 16 liters | 16 liters | 16 liters |
| Water tank | 550L | 550L | 550L |
| Water supply | Time relay | Time relay | Time relay |
| Overall dimensions(L*W*H) | 4750*2750*1870 | 4950*2950*1870 | 5500*2100*2900 |
| Wheelbase (mm) | 2900 | 2900 | 2900 |
| Curb Weight (kg) | 4000 | 4000 | 4000 |
| Drive Form | Torque converter | Torque converter | Torque converter |
| Max.Speed (km/h) | 30 | 30 | 30 |
| Maximum grade | 30º | 30º | 30º |
| Maximum turning radius (mm) | 5300 | 5300 | 5300 |
| Minimum ground clearance (mm) | 380 | 380 |
ПРОЕКТЫ
Наши продукты на рабочем месте
1.2m³ Self Loading Concrete Mixer
Oct. 14, 2023 in Kenya
6.5m³ Self Loading Concrete Mixer
Sep 26, 2023 in Kenya
1.8m³ Self Loading Concrete Mixer
Dec 14, 2023 in Uganda
5.5m³ Self Loading Concrete Mixer
Nov. 14, 2023 in Philippines
5.5m³ Self Loading Concrete Mixer
Apr. 14, 2023 in Zimbabwe
5.2m³ Self Loading Concrete Mixer
May 26, 2023 in Tanzania
4.0m³ Self Loading Concrete Mixer
Sep. 24, 2023 in Guatemala
5.5m³ Self Loading Concrete Mixer
Jul.14, 2023 in Guyana
6.5m³ Self Loading Concrete Mixer
Nov. 14, 2023 in Senegal
5.5m³ Self Loading Concrete Mixer
Mar.19, 2022 in Jamaica
1.2m³ Self Loading Concrete Mixer
Jun. 24, 2023 in Vanuatu
1.2m³ Self Loading Concrete Mixer
Feb. 30, 2022 in Saudi Arabia
4.0m³ Self Loading Concrete Mixer
Mar. 02, 2022 in Kuwait
1.2m³ Self Loading Concrete Mixer
Oct. 16, 2023 in Sudan
1.2m³ Self Loading Concrete Mixer
Sep. 05, 2022 in Indonesia
5.5m³ Self Loading Concrete Mixer
Apr.17, 2023 in Guyana
ВЫБЕРИТЕ
How to Choose A Self Loading Mixer?
Thinking about the boosted performance, performance, and also labor expense savings supplied by the self-loading mixers, it is a beneficial selection of financial investment. Yet given that these are expensive, making the right selection would be really important.
Below are some aspects that require factors to consider while purchasing self-loading concrete mixers:
Choosing The Best Brand
Contrast all the existing self-loading concrete mixer brand names which provide our needs as well as spec. Always focus on brand names with great sales and after-sales performance history.
Extra Components
The availability, as well as integrity of spare parts, will be key for the continuous service of the mixers. Always try to find suppliers with an established network for spare parts distribution. Aside from this, the expense of spare components, as well as upkeep timetable likewise, requires to be examined.
Supplier
The supplier examination requires to be done before acquiring the mixer. This can be quickly performed by assessing the export situations of the supplier, cost supplied, after-sales support, onsite assistance, and comments from existing customers if available.

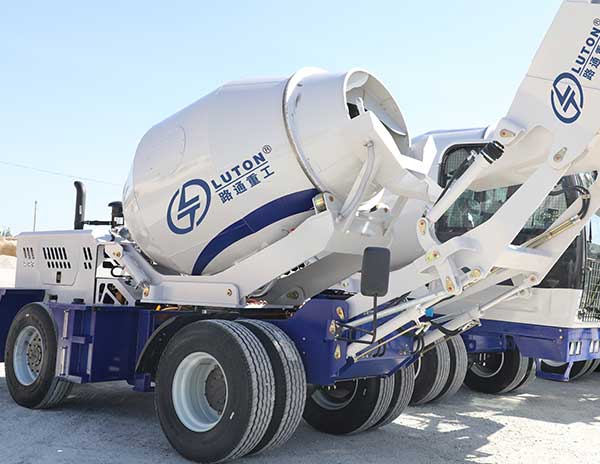

The self-loading mixers are best fit in building sites where batching plants are not available. These mixers are an effective option for the time-bounded construction site. The typical application consisted of hefty buildings like bridges as well as passage, upkeep of concrete pavements, highways, foundations, and also high-speed railways, etc.
РЕШЕНИЕ
СМЕШАННАЯ МАШИНА ДЛЯ ВЫСОКОЙ ЭФФЕКТИВНОСТИ - Self Loading Mixer Work With Pumps

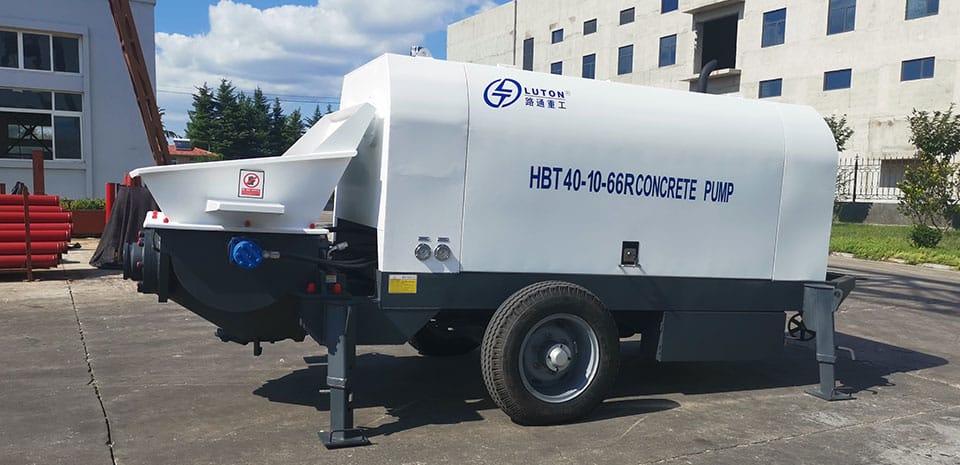

Both the self-loading mixer and stationary concrete pump can operate simultaneously, which significantly reduces the overall time required for the construction process. The mixer can prepare the next batch of concrete while the pump is still delivering the previous batch.
The combination of a self-loading concrete mixer and a stationary concrete pump can greatly increase the efficiency of a construction project by automating many of the processes involved in concrete preparation and delivery.
LUTON
МЫ ЛУЧШИЕ В СТРОИТЕЛЬСТВЕ
Founded in 1999, LUTON GROUP CO., LTD, as a joint stock company, has more than 24 years of exporting experience in manufacturing concrete plants, asphalt plants, self-loading mixers, crushers, dry mortar plants and various types of construction machinery.
100+
Экспорт в 100+ стран
30,000+
Продано 30 000+ миксеров
20+
20+ лет опыта
100%
100% Качество гарантировано
ТЕСТИМОНИАЛ
Счастливые клиенты
I have been working with these guys for years now! The self-loading mixer I bought help me a lot with concrete mixing.
Sudiroprojo
Менеджер по закупкам
Brilliant equipment! Operating them is simple. Will work again! The team was incredibly helpful and knowledgeable.
Ramiro Bemabe Tio Roque
Руководитель проекта
The mixer itself was of top quality and made the concrete mixing process so much easier. Good Machine!
Кайон
Руководитель проекта
СЛУЧАИ
Последние мировые дела
September 06, 2023
LT 1.6m³ Self Loading Concrete Mixer Arrived Brazil
Luton recently dispatched a LT 1.6 m³ Self Loading Concrete Mixer to a major infrastructure project in Brazil. Comprehensive training was provided to the customer’s engineers and operators, leading to a smooth transition.
September 13, 2023
LT 1.6m³ Self Loading Concrete Mixer Arrived Brazil
Luton recently dispatched a LT 1.6 m³ Self Loading Concrete Mixer to a major infrastructure project in Brazil. Comprehensive training was provided to the customer’s engineers and operators, leading to a smooth transition.
January 18, 2023
Another Set of Luton 4.0m³Self Loader Mixer Exported to Kazakhstan!
Great news, another set of our 4.0m³ self loader concrete mixer was sent to Kazakhstan in Jan 2023. This type of self loading mixer is popular not only in Russia but also wins great feedback in Kazakhstan and Uzbekistan.
November 28, 2023
Two Sets of Self Loading Concrete Mixers Are Sent to the Philippines
Our customers from the Philippines ordered two sets of self loading concrete mixer trucks with a 5.5m³ capacity for road construction. And the machines are sent successfully and we already received feedback from our customers.
May 27, 2023
Working Site of LT-1.8m³ Self Loading Concrete Mixer in Malaysia
The good news here, our 1.8m³ self feeding concrete mixer truck has been put into use in Malaysia. Our salesman and engineers went to the site and check the whole working conditions of the machineto run smoothly.
25 октября 2023 года
Three Sets of Self Loading Concrete Mixers Transported to Indonesia
We received another three sets of self loading concrete mixers order last month and they were well-packed and transported to Indonesia, and all of them received high praise. Contributing to a successful project.
September 20, 2023
Another Sets of Self Loading Concrete Mixers Transported to Vanuatu
We dispatched a 3.5m³ self-loading mixer to Vanuatu last month. The mixer was securely packed and shipped, arriving in excellent condition.
January 15, 2023
Five Sets of 4m³ Self Loading Concrete Mixers Sent to Canada
Our 4m³ self-loading mixer was delivered to Canada recently. The customer was highly appreciative of its easy operation and superb mixing quality.
March 09, 2023
4m³ Self Loading Concrete Mixers Transported to Salvador
We recently shipped a 4m³ self-loading mixer to Salvador. It’s now a crucial asset in their construction workflow, enhancing productivity impressively.
ПОСТАВКА
Процесс отгрузки
Процесс
На каждом этапе процесса доставки наша команда заботится о том, чтобы ваш заказ был выполнен с максимальным профессионализмом и вниманием к деталям. Мы понимаем важность вашего удовлетворения и стремимся превзойти ваши ожидания при каждой отправке.
Заказать
24 онлайн для вашего заказа
Производство
Выбирайте из запасов или продуктов
Пакет
Хорошо упакованы и промаркированы
Отправка
7 дней быстрой доставки
ОБОРУДОВАНИЕ
