SELF LOADER CONCRETE MIXER

Narrow 47% of your budget on concrete discharging. Fast feeding, efficient mixing, automated discharging โ€“ grab Luton self loader concrete mixer for sale with competitive price for a brilliant performance.

Fast investment return & lower laboring costs. Start from $14,000 to enjoy quality equipment.

Get a Free Quote!

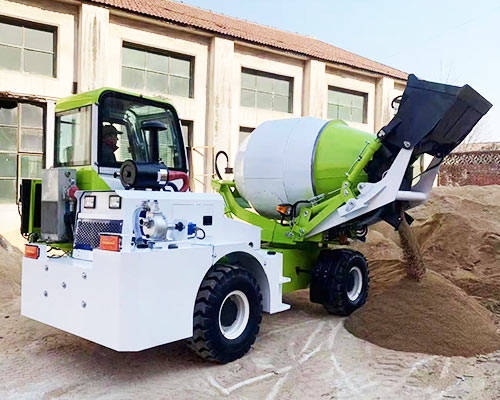

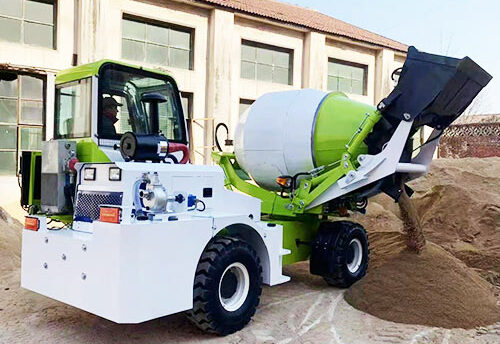

    Luton Self Loading Concrete Mixer

    Luton self-loading concrete mixer is a device that can self-load aggregates, weigh the batch, mix concrete, transport, and area it any place called for. It is therefore a stand-alone machine that can complete the concrete mixing job by requiring a single person to operate the device.

    It is widely made use of in the construction market around the world. Several special models of self-loading concrete mixers are readily available on the market, each having its benefits as well as drawbacks. All kinds are highway as well as all-terrain devices that are commonly utilized in the construction of canals, household, industrial, commercial structures, as well as other construction applications.

    Why Invest Self Loading Concrete Mixer?

    Based on authoritative statistics relating to the worldwide ready mix concrete market and construction projects, the demand for ready mix concrete rises to $2201 million by 2026, from 1242.4 million in 2020. That indicates the entire market, for the following several years, will face thriving needs, especially for developing countries. Concrete processing machines and plants in India, the Philippines, Pakistan, South Africa, and Sri Lanka, are accordingly meant to raise their prices, making it necessary to obtain and invest self loading mixers with competitive prices.

    Besides, with the higher demand for high-grade concrete, the concrete plant prices will rise in the near future, bringing tougher conditions for those who lack the budget. The cheaper substitute โ€“ self loading mixer truck, owns a higher investment value to some extent.

    That is why you should and must invest Luton self loading concrete mixer truck, with high performance and delicate design, you will get a fast return on your investment within one year! Just call us to start your business now!

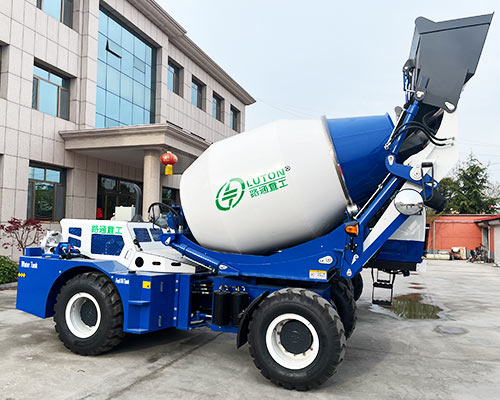

    LUTON SELF LOADING CONCRETE MIXER FOR SALE

    Large capacity with simple design, Luton self loading concrete mixer offers a maximum of 6.5mยณ capacity, meeting both small and large construction demands.

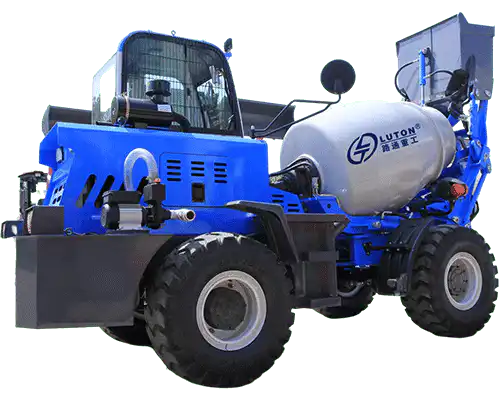

    1.2mยณ Self Loading Mixer For Sale

    ModelLT-1.2
    Discharge capacity(mยณ)1.2
    Oil tank16L
    Gear4 forward, 4 back
    Drum rotate270ยฐ

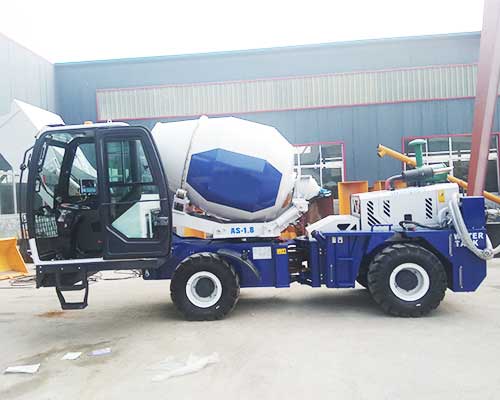

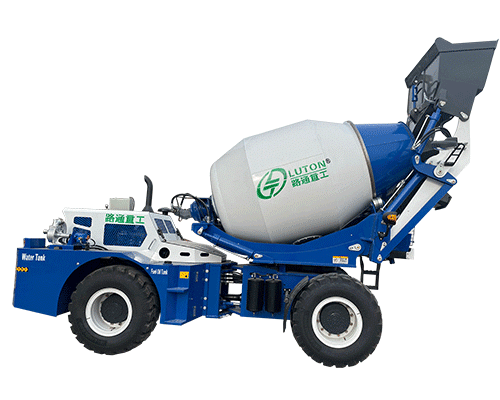

    1.8mยณ Self Loading Mixer For Sale

    ModelLT-1.8
    Discharge capacity(mยณ)1.8
    Gear shift4 forward 4 back
    Oil tank16L
    Drum rotate270ยฐ

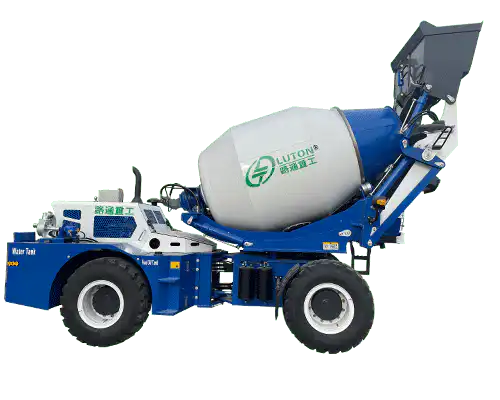

    2mยณ Self Loading Mixer For Sale

    ModelLT-2.0
    Discharge capacity(mยณ)2
    Gear shift4 forward 4 back
    Oil tank16L
    Drum rotate270ยฐ

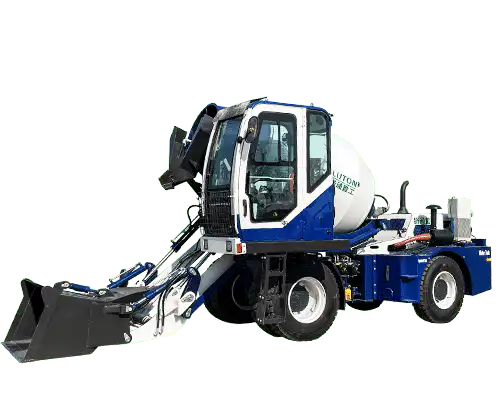

    2.6mยณ Self Loading Mixer For Sale

    ModelLT-2.6
    Discharge capacity(mยณ)2.6
    Oil tank16L
    Gear4 forward 4 back
    Drum rotate270ยฐ

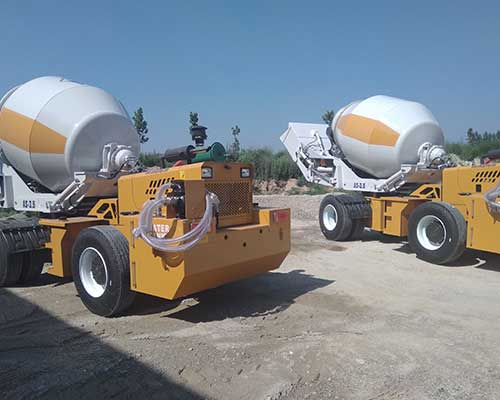

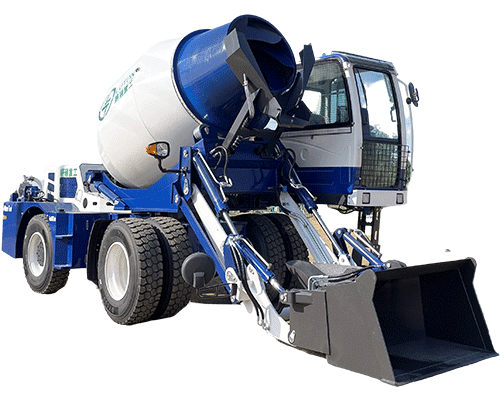

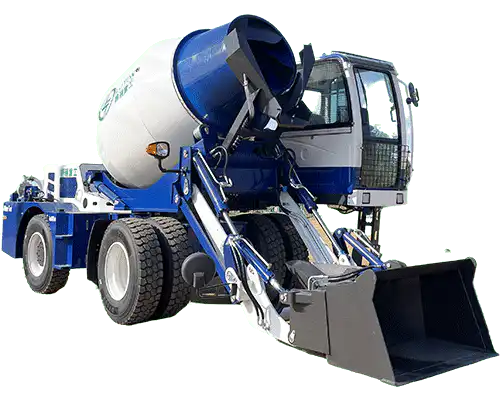

    3.5mยณ Self Loading Mixer For Sale

    ModelLT-3.5
    Discharge capacity(mยณ)3.5
    Oil tank16L
    Gear4 forward 4 back
    Drum rotate270ยฐ

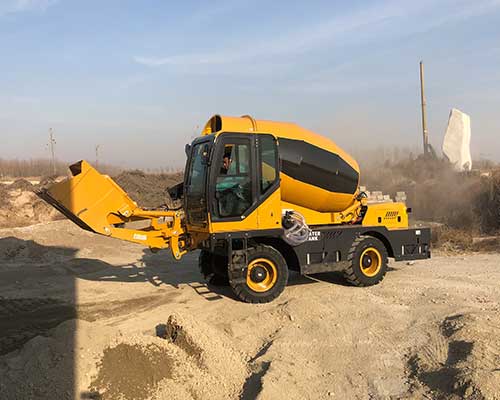

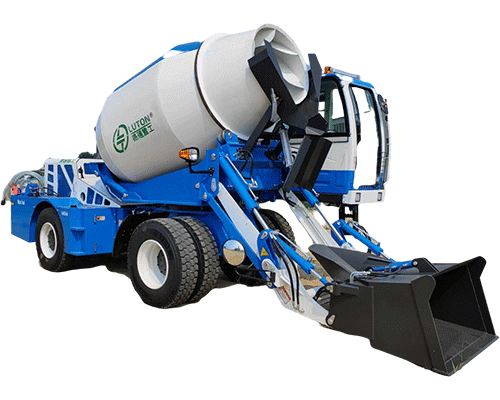

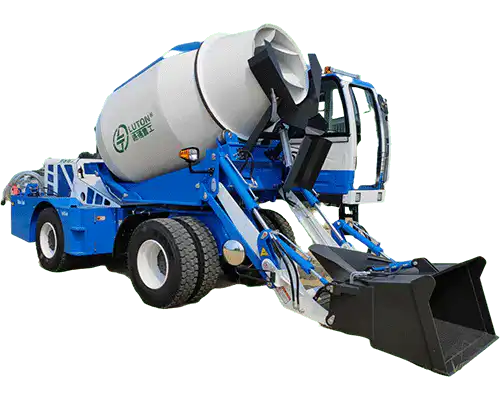

    4mยณ Self Loading Mixer For Sale

    ModelLT-4
    Discharge capacity(mยณ)4
    Oil tank16L
    Gear4 forward 4 back
    Drum rotate270ยฐ

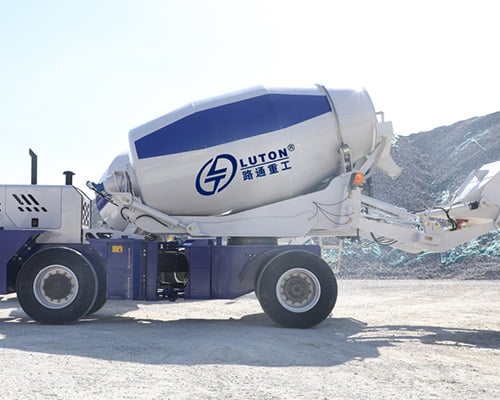

    5.5mยณ Self Loading Mixer For Sale

    ModelLT-5.5
    Discharge capacity(mยณ)5.5
    Oil tank16L
    Gear4 forward 4 back
    Drum rotate270ยฐ

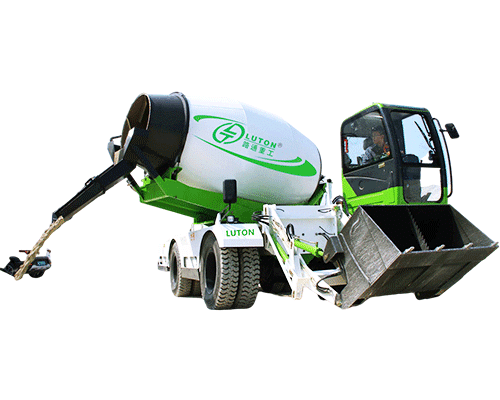

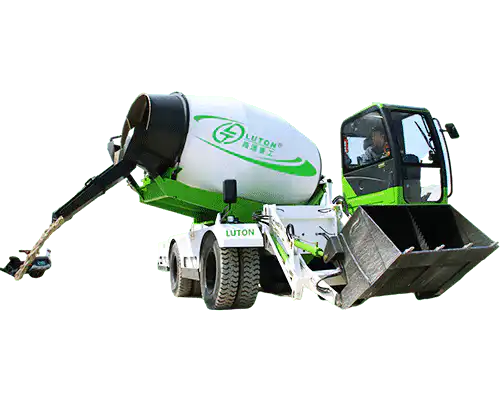

    6.5mยณ Self Loading Mixer For Sale

    ModelLT-6.5
    Discharge capacity(mยณ)6.5
    Oil tank16L
    Gear4 forward 4 back
    Drum rotate290ยฐ

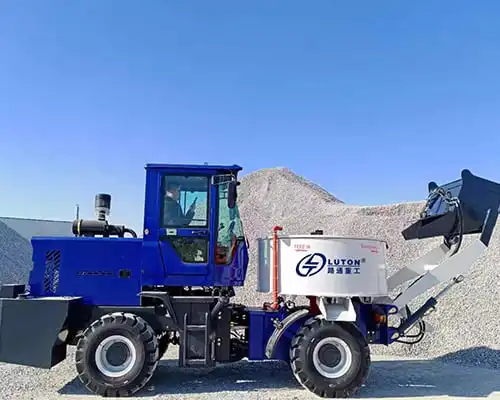

    LTP-1.2 Self Loading Pan Mixer For Sale

    Forced mixing allows more even mixing of your concrete, making it an ideal choice for small projects.

    ModelLTP-1.2
    Total hydraulic system capacity60 liters
    Rated power(KW)55 ~ 60
    Gear4 forward 4 back
    Drum speed (R/M)8-20

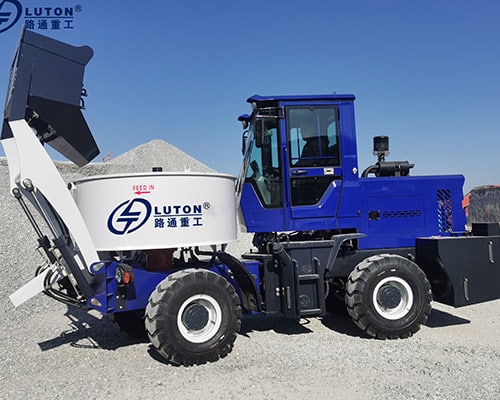

    LTP-1.6 Self Loading Pan Mixer For Sale

    ModelLTP-1.6
    Total hydraulic system capacity60 liters
    Rated power(KW)76 ~ 78
    Gear4 forward 4 back
    Drum speed (R/M)8-20

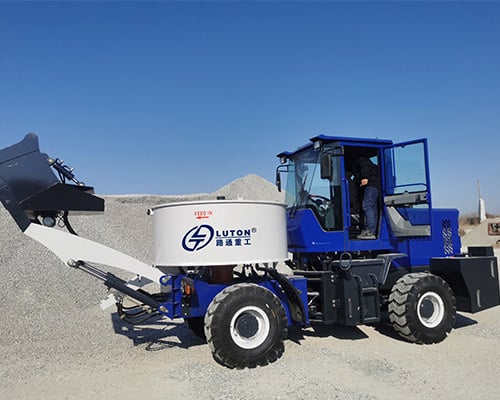

    LTP-2.0 Self Loading Pan Mixer For Sale

    ModelLTP-2.0
    Total hydraulic system capacity60 liters
    Rated power(KW)76 ~ 78
    Gear4 forward 4 back
    Drum speed (R/M)8-20

    Global Cases of LUTON Self Loading Concrete Mixer

    Two Sets of Self Loading Concrete Mixers Are Sent to the Philippines

    Our customers from the Philippines ordered two sets of self loading concrete mixer trucks with a 5.5mยณ capacity for road construction. And the machines are sent successfully and we already received feedback from our customers.

    Another Set of Luton 4.0mยณSelf Loader Mixer Exported to Kazakhstan!

    Great news, another set of our 4.0mยณ self loader concrete mixer was sent to Kazakhstan in Jan 2022. This type of self loading mixer is popular not only in Russia but also wins great feedback in Kazakhstan and Uzbekistan. Click here to get the same model here!

    Working Site of LT-1.8mยณ Self Loading Concrete Mixer in Malaysia

    The good news here, our 1.8mยณ self feeding concrete mixer truck has been put into use in Malaysia. Our salesman and engineers went to the site and check the whole working conditions of the machine.

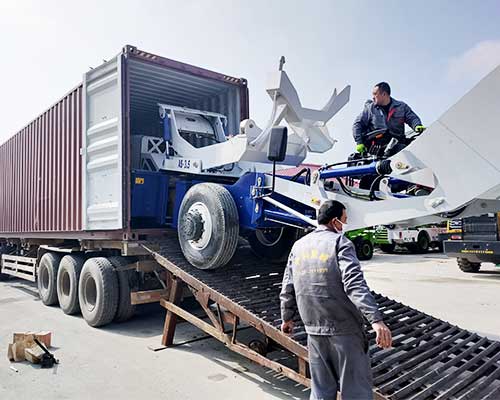

    Three Sets of Self Loading Concrete Mixers Transported to Indonesia

    We received another three sets of self loading concrete mixers last month and they were well-packed and transported to Indonesia, and all of them received high praise.


    Self Loading Mixer Working in Somalia

    Self Loading Mixer in Nigeria

    Self Loading Mixer Sent to Singapore

    Self Loading Mixer in Kenya

    Here’s The Feedback From Our Customers

    I have been working with these guys for years now! The self-loading mixer I bought help me a lot with concrete mixing. Highly recommended!

    Sudiroprojo – Indonesia

    Brilliant equipment! Operating them is simple. Will work again!

    Ramiro Bemabe Tio Roque – Philippines

    What Is Self Loading Concrete Mixer Price?

    The basic prices of a self loading concrete mixer range from $10,000 to $40,000, based on the capacity you require. Being a functional machine that combines feeding, mixing, and discharging together, self loading concrete mixer takes on the role of a small concrete plant, thus it is an ideal choice for the one lacking a budget but in urgent need of such a machine for small construction projects.

    Though self loading mixer prices are far cheaper than that of a concrete plant, you still need to consider the additional costs, including material costs, workers’ earnings as well as expenses of insurance policy, etc.

    Among various types of self loading mixers, despite their unique design, the discharge capacity of the machine is the priority consideration you should make. Common capacity lies in the range of 1.2 to 6.5mยณ, the larger capacity, the higher prices, yet the higher-end needs it meets.

    Self Loading Concrete Mixer Price List

    Discharging Capacity(mยณ)Approximately Price
    1.2mยณ Self Loading Mixer$14,800
    1.8mยณ Self Loading Mixer$18,000
    3.5mยณ Self Loading Mixer$28,500 – 32,500
    4mยณ Self Loading Mixer$31,300
    5.5mยณ Self Loading Mixer$51,300 – 53,500
    6.5mยณ Self Loading Mixer$66,200

    Cost of Running Self Loading Concrete Mixer Project

    Apart from purchasing prices, the additional expenses also affect overall costs, including types, capacity, and raw material costs, along with laboring costs and insurance charging costs. Here are some critical considerations that must be accounted for in detailing your investment value.

    1. Discharging Capacity

    Normal discharging capacity fits common construction demands is from 1.2mยณ to 6.5mยณ, some higher goes 7 or 8mยณ, mainly serves for particular large construction projects.

    Smaller one like building roads or bridges is compatible well with 1.2mยณ or 2/3mยณ self loader mixer, the prices of each are undoubtedly lower. While the larger projects like house construction require a higher capacity range, or else the timelines of production will be extended.

    2. Models and Designs

    The basic functions of self loading concrete mixers are feeding, mixing, and transporting, yet the design of each manufacturer affects a lot of working efficiency. Simpler operation means lower learning costs.

    3. Laboring Costs

    Compared with concrete plants, laboring costs of self loading mixer are quite low, for one person is able to handle the machine from feeding to transporting. And this cost can be further narrowed because no special skill is needed to operate it.

    4. Various Operation Costs.

    Raw material purchasing costs and electrical power costs should also be considered in your investment.

    Luton Self Loading Concrete Mixer Characteristic

    4 in 1 Machine Design

    Luton Self loading concrete mixer truck can replace an electrical generator, materials mover, wheel loader, and also concrete mixer. It can stir while moving, concerning 1 to 2 minutes, the concrete mixture will be finished equally. Meanwhile, it can make the blending drum revolve concerning 90 levels left and right, and also discharge from different angles, which displaces the traditional blending technique as well as conserves the device’s expense.

    Automatic Mixing System

    en aggregate and cement enter into the mixing cylinder of self concrete mixer and also mix with water flow in the water container, a unique “T” kind twin-screw make sure the top quality of concrete(if required, can be outfit with an electronic weighing system.

    Blending speed is fast, one hopper per minute, in addition, mix when carrying on the road, which will save much time, when surface the feeding, the driver can directly drive to the discharge location, in the process of driving, the concrete will be produced.

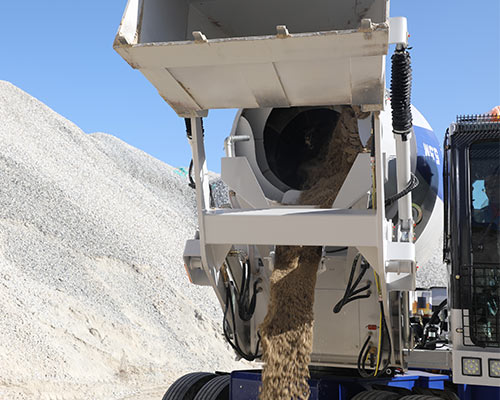

    Automatic Feeding System

    Our self loading mobile concrete mixture uses a distinct hinged hydraulic shovel, which can load the application precisely; blades inside the container can instantly remove the concrete bag as well as in case of the waste of raw materials; all applications can become part of the blending cylinder from the pail efficiently and promptly.

    In this manner replaces the standard feeding method, on the one hand, conserves the expense of purchasing a wheel loader, on the other hand, decreases environmental pollution and also can attain maximum use materials area.

    Feeding time is faster and also feeding accuracy is a lot more precise.

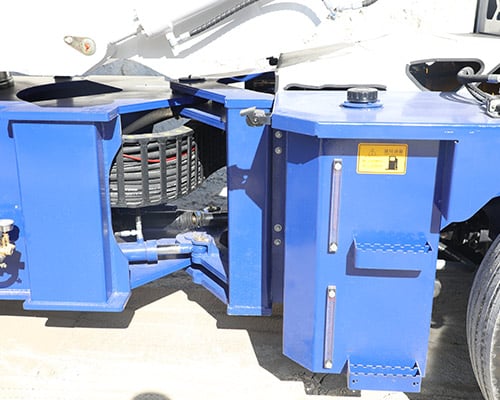

    Components of Self-loading Cement Mixer Truck

    The general elements of a self-loading concrete mixer are

    Packing System

    The packing system in a self-loading concrete mixer includes a hydraulic shovel plan to pack the material quickly and accurately. A few of the makes offer shovels with a blade which enables to cut the concrete bags while packing. The hydraulic system capabilities vary depending upon the load-bearing ability of the mixer.

    Evaluating System

    The evaluating system in a self loading mobile concrete mixer consists of computerized considering tools that regulate as well as present the weight of the material

    Mixing System

    The mixing system in the self propelled concrete mixer assists in the blending of aggregate as well as concrete fed to the blending drum with water offered from an independent water system or through a hands-on supply. This blending drum is invigorated by a completely powered engine to deliver a uniform blend and quality concrete.

    Releasing System

    The discharging system in the self feeding concrete mixer provides an option for the driver to discharge the concrete mix at different angles and also heights. The discharge system can be adjusted by the operator by regulating the blending drum angles to provide discharge in numerous elevations. The change of drum angles can be done by a handle shank in the operator cabin.

    Wheel System

    The self-loading mixer comes with a 4-wheel drive wheel system which makes it possible for the operator to manure with the toughest terrains in the building and construction site extremely quickly. These mixers are outfitted with high-resistant engineering tires.

    Specifications of Self-loading Concrete Mixers

    Specifications of Self Loading Mixer

    Equipment ModelLT-1.2LT-1.8LT-2.0LT-2.6LT-3.5LT-4.0LT-5.5LT-6.5
    Discharge Capacity1.2m31.8m32m32.6m33.5m34m35.5m36.5m3
    Output/Capacity5-10m3/h8-12m3/h10m3/h11-17m3/h14-18m3/h16-20m3/h22-25m3/h26-30m3/h
    Engine ModelYUNNEI supercharged engineYuchai 4102 Turbo-chargedYuchai 4102 Turbo-chargedYuchai 4102 Turbo-chargedYuchai 4105 Turbo-chargedYuchai 4108 Turbo-chargedYuchai Turbo-chargedWeichai deutz 6105 Pressure boost
    Rated Power58KW78KW78KW78KW85KW91KW92KW~110KW92KW~110KW
    Gear4 forward 4 back4 forward 4 back4 forward 4 back4 forward 4 back4 forward 4 back4 forward 4 back4 forward 4 back4 forward 4 back
    Oil tank16 liters16 liters16 liters16 liters16 liters16 liters16 liters16 liters
    Water tank400L500L500L500L620L660L860L1465L
    Water supplyTime relayTime relayTime relayTime relayTime relayTime relayTime relayTime relay
    Overall dimensions(L*W*H)6400*2550*24507300*2650*37507300*2650*37507800*2720*30007800*2720*33007500*2800*36008450*3100*45808450*3050*3860
    Curb Weight (kg)4185650065006500720085001120012520
    Drum rotate270ยบ270ยบ270ยบ270ยบ270ยบ270ยบ270ยบ290ยบ

    Specifications of Self Loading Pan Mixer

    Equipment ModelLTP-1.2LTP-1.6LTP-2.0
    Engine ModelCHANGFA490 TURBO-CHARGEDYUNNEI 4102YUNNEI 4102
    Rated Power55-60kw76-78kw76-78kw
    Drum speed (R/M)8-208-208-20
    Gear box modelZL-265 power shift gearbboxZL-265 power shift gearbboxZL-265 power shift gearbbox
    Gear4 forward 4 back4 forward 4 back4 forward 4 back
    Total hydraulic system capacity60 liters60 liters60 liters
    Oil tank16 liters16 liters16 liters
    Water tank550L550L550L
    Water supplyTime relayTime relayTime relay
    Overall dimensions(L*W*H)4750*2750*18704950*2950*18705500*2100*2900
    Wheelbase (mm)290029002900
    Curb Weight (kg)400040004000
    Drive FormTorque converterTorque converterTorque converter
    Max.Speed (km/h)303030
    Maximum grade30ยบ30ยบ30ยบ
    Maximum turning radius (mm)530053005300
    Minimum ground clearance (mm)380380

    Features of Self-Loading Concrete Mixer

    One of the important functions of a self-loading mixer is its easy procedure. Because of its self-loading layout, it can automatically generate as well as carry concrete on-site.

    Various other functions of a self mixing concrete truck are stated listed below.

    • A self-loading concrete mixer is a multi-functional machine that can self-loading all the concrete ingredients, mix, transport, and discharge.
    • Self loader mixer usually possesses a four-wheel-drive system that gives high traction to help the machine work in very soft clay site conditions.
    • It has a hydraulic-driven drum that provides high turning that assists in reliable mixing procedure. Once the mix is ready the drum can be lifted for fast and also reliable discharge of concrete.
    • The self concrete mixer machine has a steel bucket that makes it possible for the operator to load resources to the drum.
    • The loading and also blending operations, the speed, and direction of the drum are all regulated from the cabin of the vehicle
    • A self loading transit mixer can be quickly packed in big vehicles and also delivered to any kind of long-distance construction site. This feature makes it suitable for little, slim, and isolated building and construction sites.

    270ยฐ Free Rotation

    270ยฐ free rotation design of our machine covers a whole range of working areas and effectively improves working efficiency to 30%.

    30% Less Laboring Costs

    Our super compact but functional self mixer machines allow one driver and assistant to complete concrete transportation for small or large project demands.

    Fully Automatic Process

    From aggregate feeding, batching to concrete mixing, enjoy the fully automatic process to fasten 25% of your construction speed without improving unnecessary costs.

    20% Electricity Saved

    3 in 1 self loading concrete mixer beats over costly concrete mixers in making the concrete mixing and transporting easier, and wins in narrowing your electricity bills to large extent.

    Contact Us for a Free Consultation.

    Time-tested Luton Manufacturer

    100+ Countries Exported

    20+ years industrial experience incorporates with innovative design, 100+ countries exported proves leading position in the industry.

    30,000+ Mixers Sold

    Luton group has now manufactured and sold 30,000+ self loading mixers, providing unmatched solutions for practically all sectors.

    40% Operating Costs Saved

    Standardized construction with reliable components makes it adaptable to multiple applications, fully automation design extends service life and accordingly reduces the operating costs.

    6.5mยณ Large Discharge Capacity

    Quality structural design guarantee high product quality, with the maximum discharging capacity of 6.5mยณ, meeting multiple construction sites.

    Gallery

    Advantages of Self Loading Concrete Mixer

    Self-loading concrete mixer can self-load, mix as well as discharge concrete at different heights and angles– Enabling long-time efficiency and cost-saving.

    1. Self-loading concrete mixture for sale can rotate 270 degrees;

    2. Self load, meter, mix, and discharge;

    3. Compact structure and easy movementโ€”four wheels steering;

    4. High working efficiency and less energy consumption;

    5. High stirring quality and short stirring time.

    6. The main hydraulic components are imported!

    7. At least 5 workloads are saved per day!

    8. Save electricity 100 degrees every day without a blender!

    Contact Us for a Free Consultation.

    Working Principle of Self Loading Concrete Mixer

    The complete concrete mixing procedure can be performed by a single operator. Originally, concrete is displaced by hand in the bucket, and also water is fed right into the drum. Its one-of-a-kind bucket packing operation gathers sand and also accumulations load the turning drum promptly as well as efficiently.

    The high-speed turning drum makes sure to offer a homogenous concrete mix, which can be moved as well as positioned wherever needed. For this reason, self-loading concrete mixer lowers extra labor as well as concrete transport expense.

    1. All the operations can be run by drivers in the drivers’ cab. Drivers can press various buttons to do different steps. And the display will show the weight of every type of raw material.
    2. The driver drives the self loading transit mixer concrete mixer machine to the stacking area of materials and puts all the raw materials including sand, stone, required by manufacturing right into the mixing drum with the bucket, and the mixing drum starts to mix all the materials, after finished concrete mixing, the operator will send the concrete combination to the marked building website, during the transportation, the mixing drum will certainly keep mixing the concrete in case the concrete blend will ice up.
    3. It can work without a power supply, due to the fact that the entire machine will provide a sustainable source of power. In some special building projects, which is away from industrial concrete batching plant, such as maintenance of concrete pavement roadway, bridge-tunnel building and construction, area degree freeway building, building and construction of protection facilities, high-speed train construction, upkeep of plant or structure flooring building, and so on, it will be geared up with onboard lighting system, as well as can attain 24-hour’ building and construction work and improve the functioning effectiveness.
    4. Furthermore, as one of the most trustworthy self loading concrete mixer providers, we will offer customers the most effective service of concrete mixing, delivering, and also putting.

    Contact Us for a Free Consultation.

    How to Choose A Self Loading Mixer?

    Thinking about the boosted performance, performance, and also labor expense savings supplied by the self-loading mixers, it is a beneficial selection of financial investment. Yet given that these are expensive, making the right selection would be really important.

    Below are some aspects that require factors to consider while purchasing self-loading concrete mixers

    1. Choosing The Best Brand

    Contrast all the existing self-loading concrete mixer brand names which provide our needs as well as spec. Always focus on brand names with great sales and after-sales performance history.

    2. Extra Components

    The availability, as well as integrity of spare parts, will be key for the continuous service of the mixers. Always try to find suppliers with an established network for spare parts distribution. Aside from this, the expense of spare components, as well as upkeep timetable likewise, requires to be examined.

    3. Supplier

    The supplier examination requires to be done before acquiring the mixer. This can be quickly performed by assessing the export situations of the supplier, cost supplied, after-sales support, onsite assistance, and comments from existing customers if available.

    The self-loading mixers are best fit in building sites where batching plants are not available. These mixers are an effective option for the time-bounded construction site. The typical application consisted of hefty buildings like bridges as well as passage, upkeep of concrete pavements, highways, foundations, and also high-speed railways, etc.

    Contact Us for a Free Consultation.

    WHY CHOOSE US?

    Luton Group sells in over 100 countries through an experienced sales team. More than 100,000 installed construction machines and equipment guarantee our strength.

    Founded in 1999, LUTON GROUP CO., LTD, as a joint stock company, has more than 24 years of exporting experience in manufacturing concrete plants, asphalt plants, self-loading mixers, crushers, dry mortar plants and various types of construction machinery. Many years of experience and unrivaled customer recognition drive LUTON GROUP to become a technologically innovative company with high-quality products and competitive prices.

    Can Buying A Used Self Loading Mixer Reduce Overall Costs?

    The spending of self loading concrete mixer, especially work for large projects, can be much higher. Under such conditions, many individuals turn their eyes to the market for buying used self loading concrete mixers. Is it really cost-effective than a brand new one? No, we advise purchasing the latter one based on the following facts.

    1. Quality Issues

    Unlike the new machine, the used self loading mixer might have hidden problems concerning the performance and quality for long time use. Purchasing costs can be lower for the second-hand machine, yet the maintenance costs and repair costs will hollow out most of your savings.

    2. After Sale Issues

    The second-hand self loading mixer normally has passed the service warranty period, which means you can no longer share the after-sale service. No matter for the quality of the machine, or any other problems, can only be solved by yourself. This brings raised upkeep expenses.
